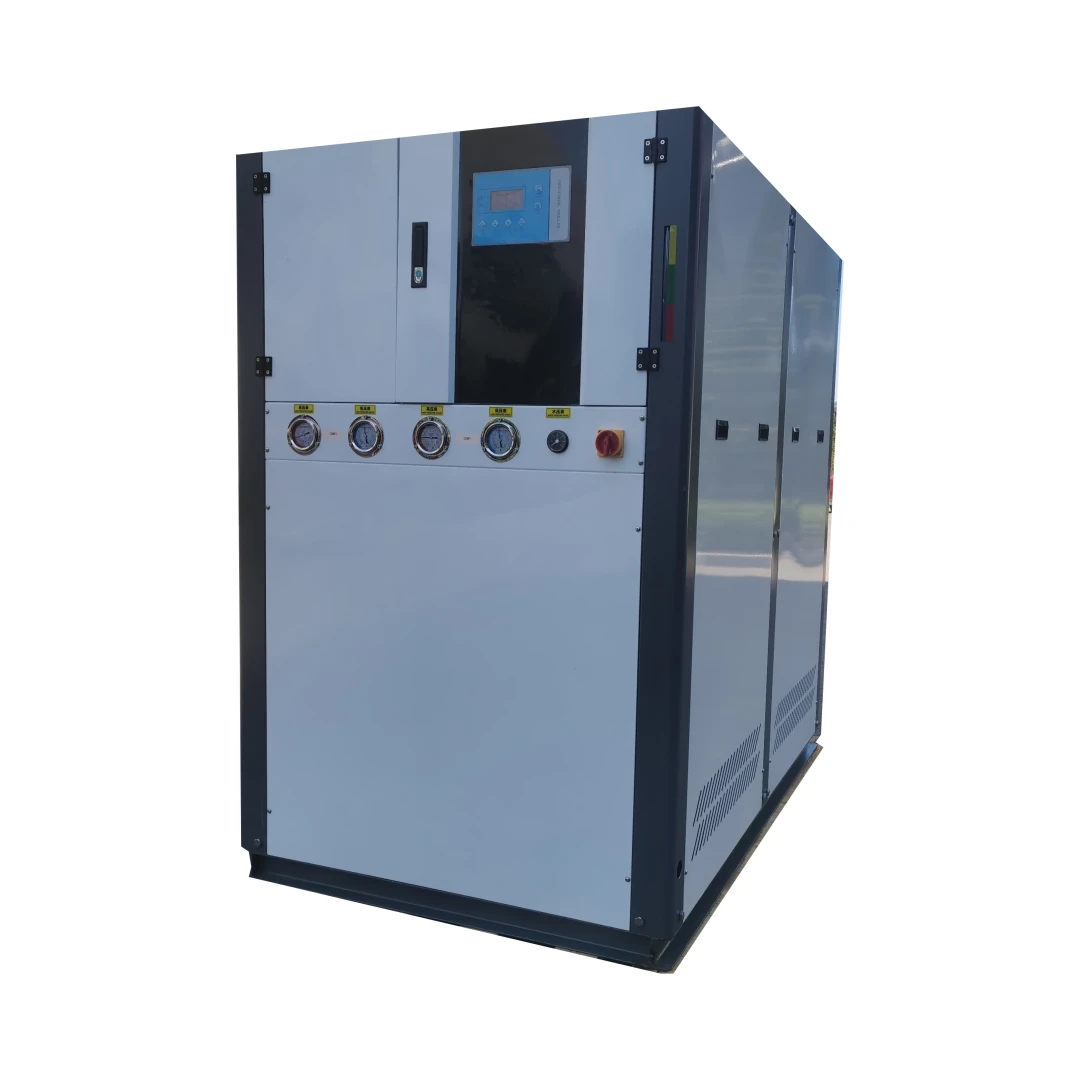

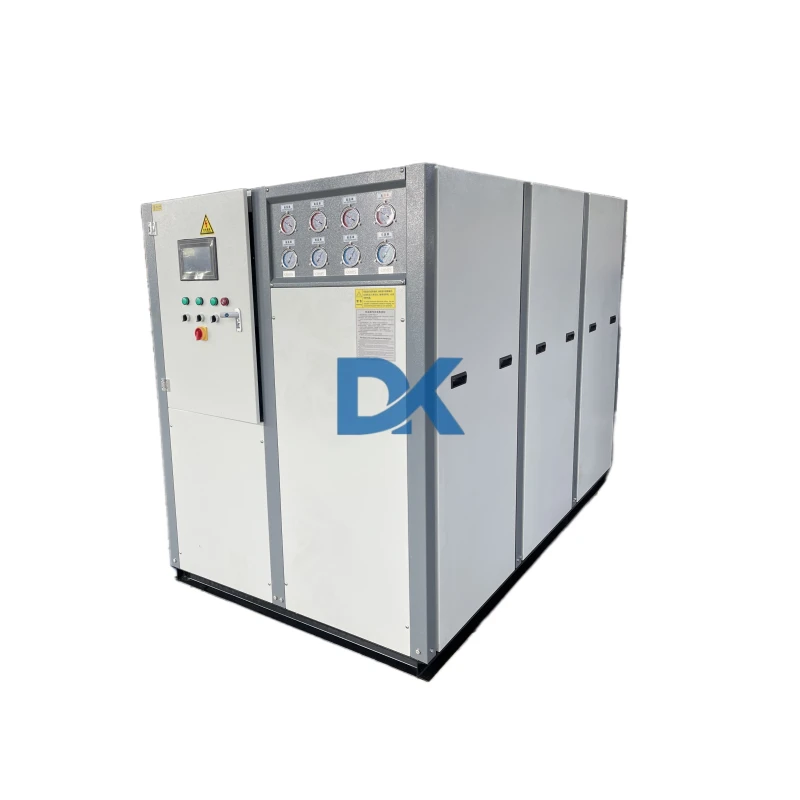

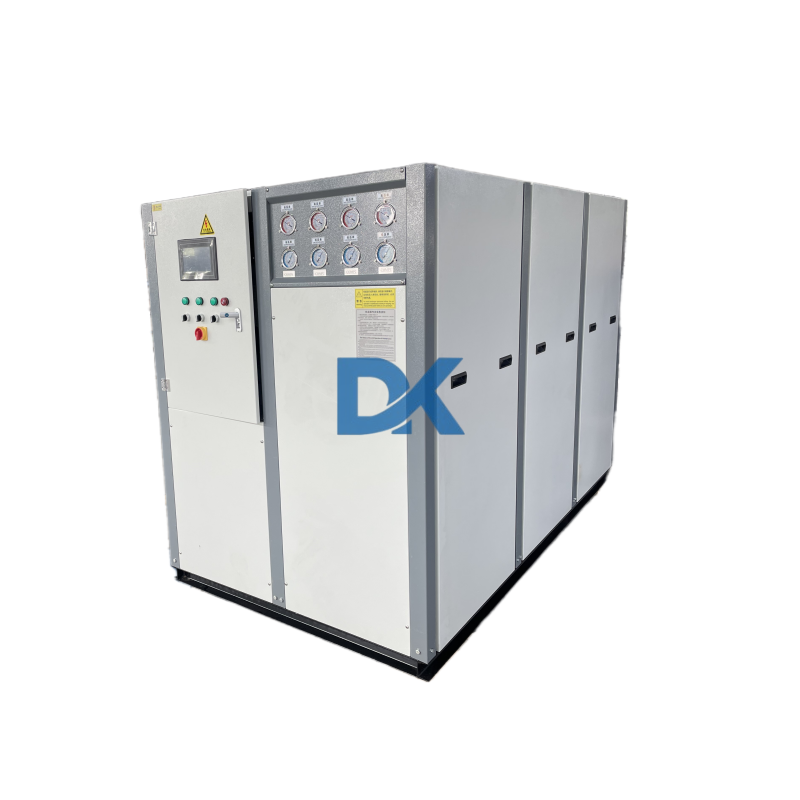

Packaged Water Cooled Chillers Introduction

The packaged water-cooled chiller is an automated packaged product. With a simple press of the controller button, the chiller can operate automatically without requiring manual supervision throughout the process.

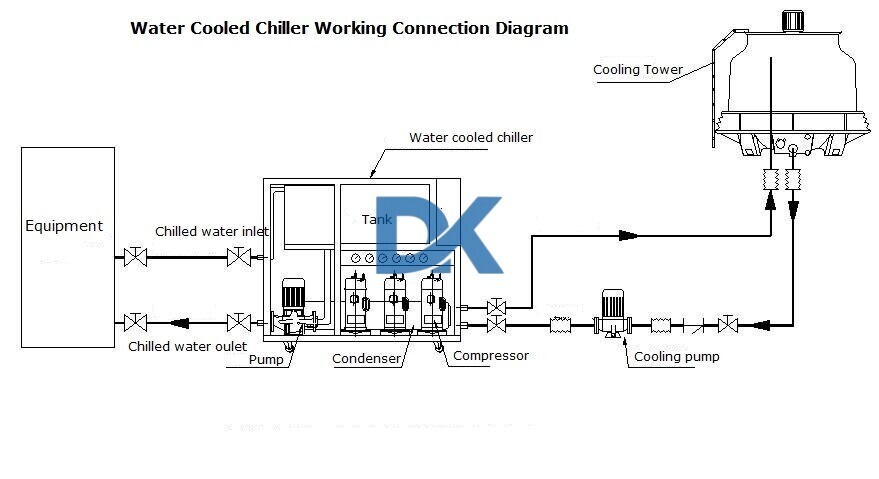

The water-cooled chiller incorporates a compressor and a chilled water circulation pump. The chilled water pump delivers cold water to user equipment for cooling purposes. Subsequently, the warmer circulating water returns to the chiller for re-cooling. The condenser of the chiller connects to a cooling tower, which removes system heat through a cooling water pump.

Compressor:
Adopt world-renowned brand hermetic scroll compressors that offer 20-30% higher energy efficiency compared to reciprocating compressors. Features more stable and reliable operation, higher efficiency, fewer malfunctions, reduced vibration, low noise levels, and easy maintenance. The compressors can automatically alternate operation according to load variations, balancing operating durations to significantly extend the chiller's service life.

Evaporator:
Three configurations available to meet diverse connectivity needs:

Stainless steel tank coil type

Shell and tube type with internal/external threaded copper tubes (smooth inner surface for enhanced refrigeration efficiency

Stainless steel plate heat exchanger
All evaporators feature 25mm PE insulation panels to prevent condensation and minimize cooling loss.

Condenser:
Incorporates high-efficiency shell and tube for superior heat exchange efficiency and operational stability.

Protection Systems:
Includes temperature control switches, high/low pressure switches, overload protectors, compressor overheating protectors, compressor frequent-start protection, and abnormal condition indicators.

Microcomputer Control System:
Dake's self-developed high-intelligence PLC and PC-level microcomputer control system enables remote monitoring. Features simple operation, direct power connection, low failure rate, high safety factor, and easy installation. Users can set parameters according to actual operational requirements with intuitive and reliable controls.

Cabinet :
Chiller cabinet panels are manufactured using high-precision CNC punching machines with electrostatic powder coating, offering elegant appearance and excellent sound insulation. As an industrial chiller solution provider, Dake offers one-stop procurement services including cooling towers, water pumps, valves, filters, and piping systems (when required).
