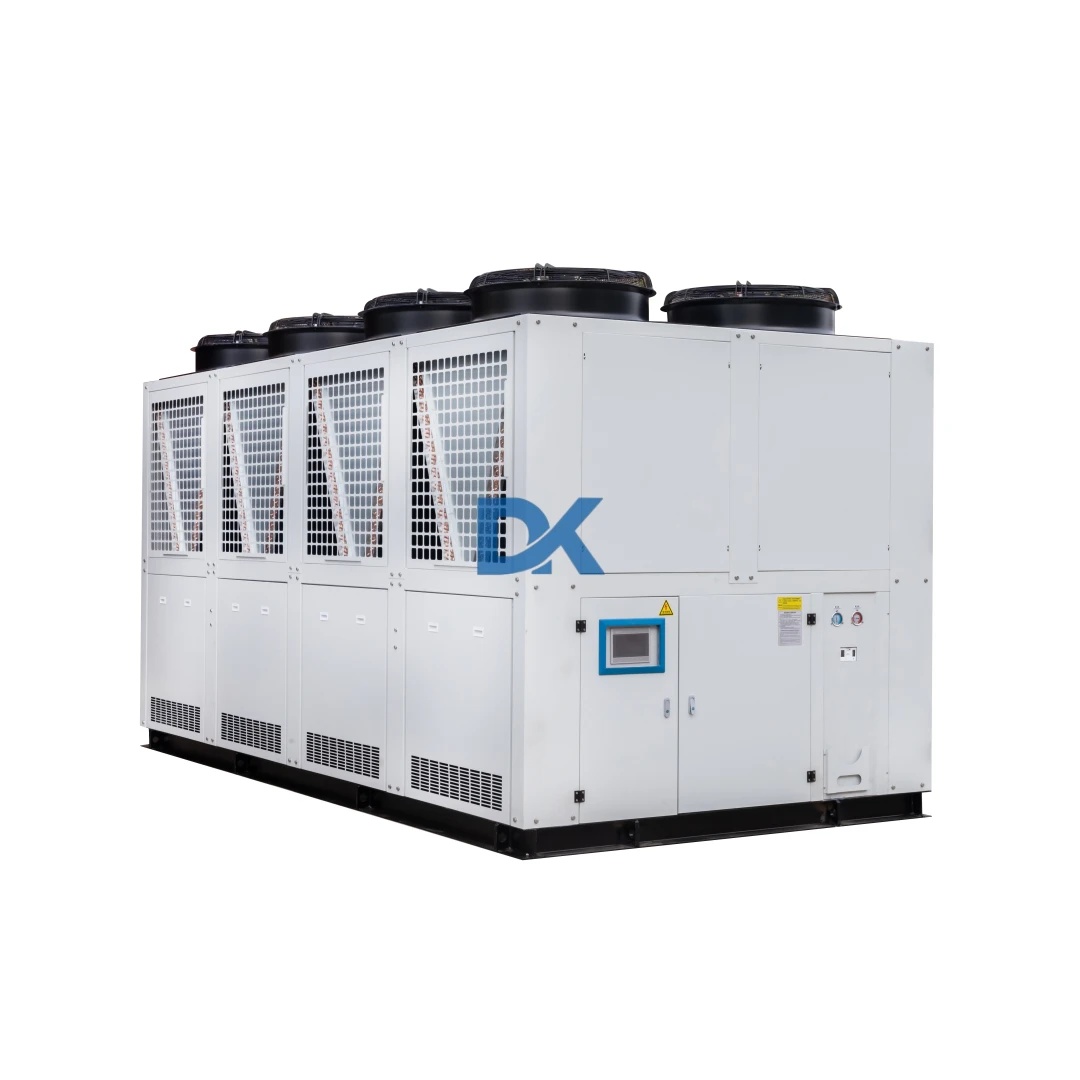

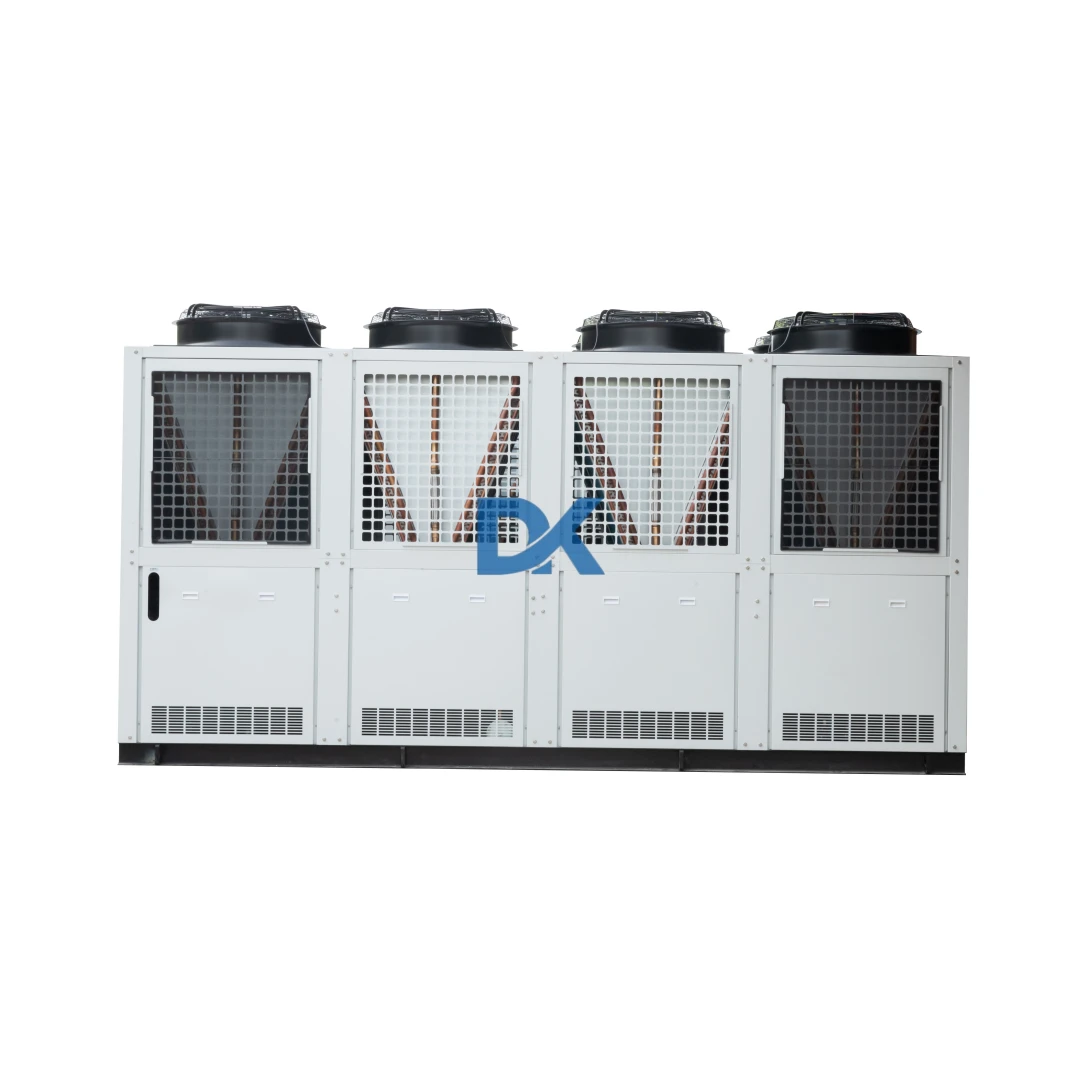

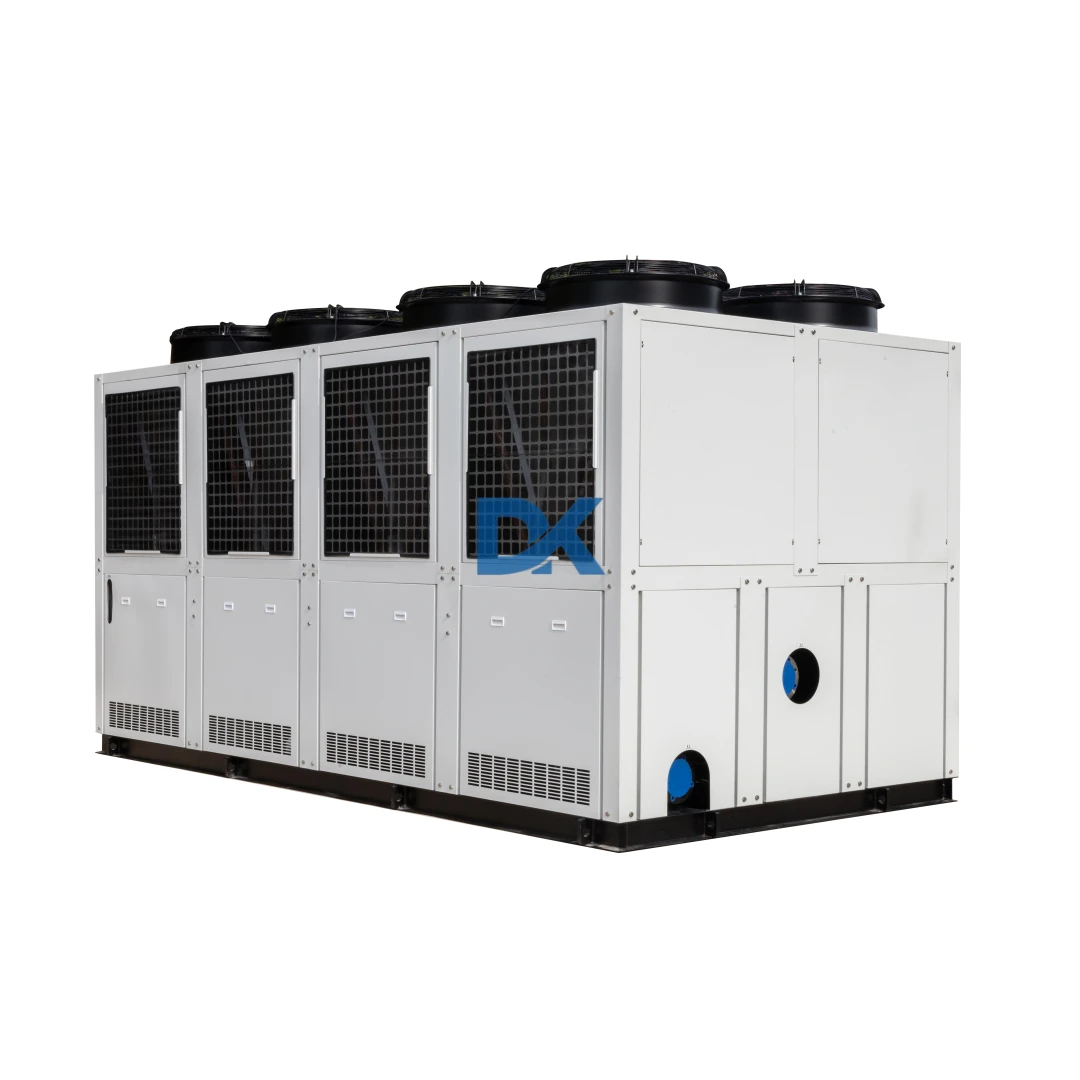

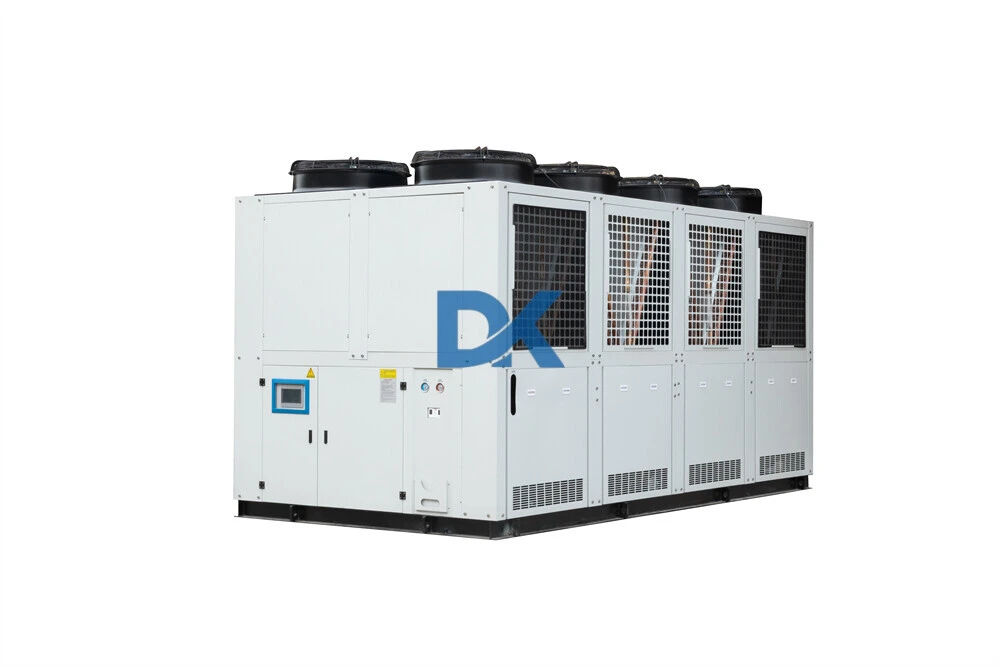

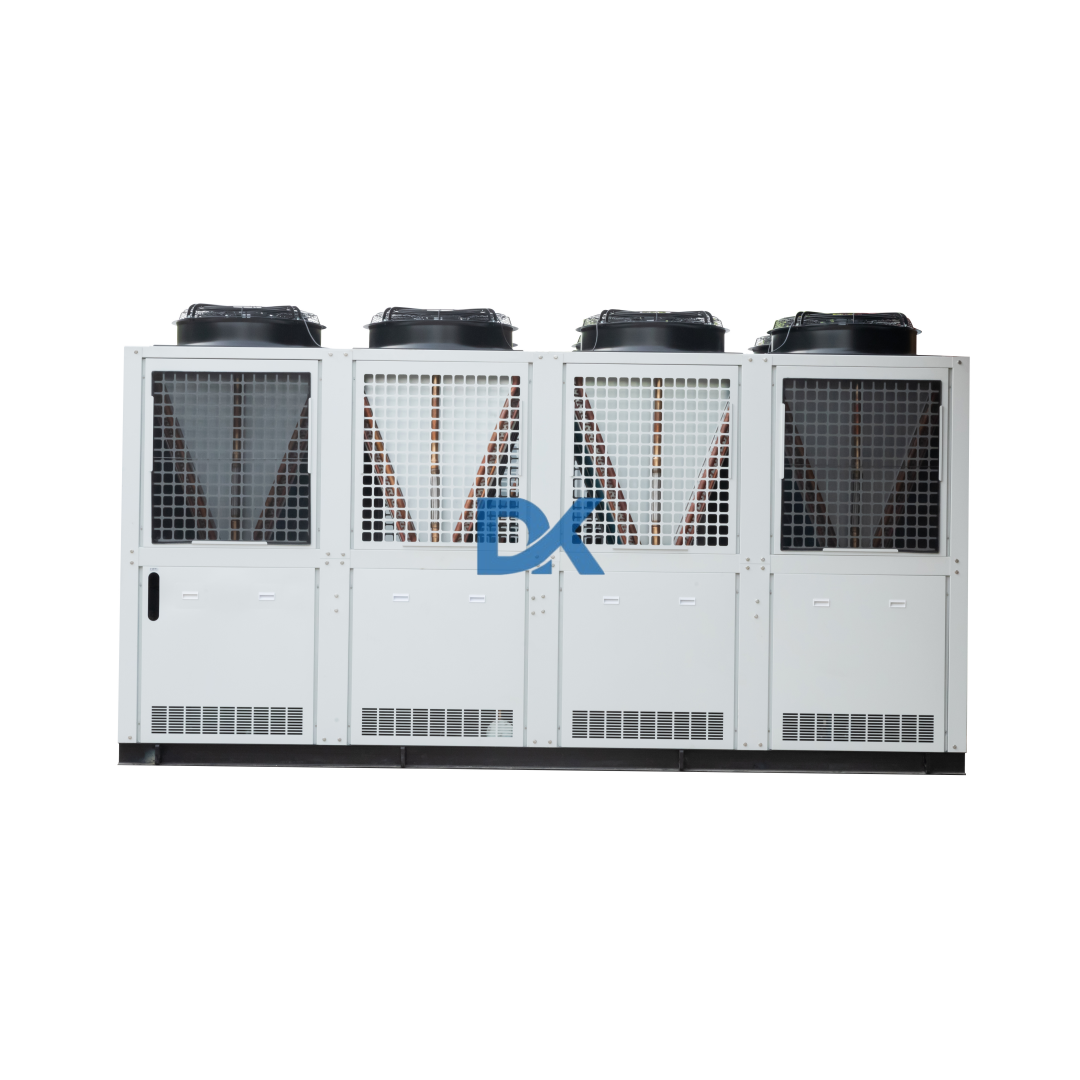

20TR to 150TR Air Cooled Industrial Chiller With Screw Type Compressors

Energy efficient air-cooled chiller Cooling Capacity: 20~150 Tons
Power Supply: 208V~380~480V, 3-Phase,50Hz/60Hz
Industrial process chiller outlet temperature: +5 ℃~+35 ℃, or if any lower temperature need, please visit air cooled glycol chiller product introduction.
HANBELL / BITZER Semi-hermetic screw type compressor
Certifications: CE, ISO 9001
Condenser: High-efficiency air cooled type
Evaporator: Closed type shell and tube
Easy installation and operate, no need install cooling tower.

Email

Inquiry Now

Description

Technical Parameters

Detail Images

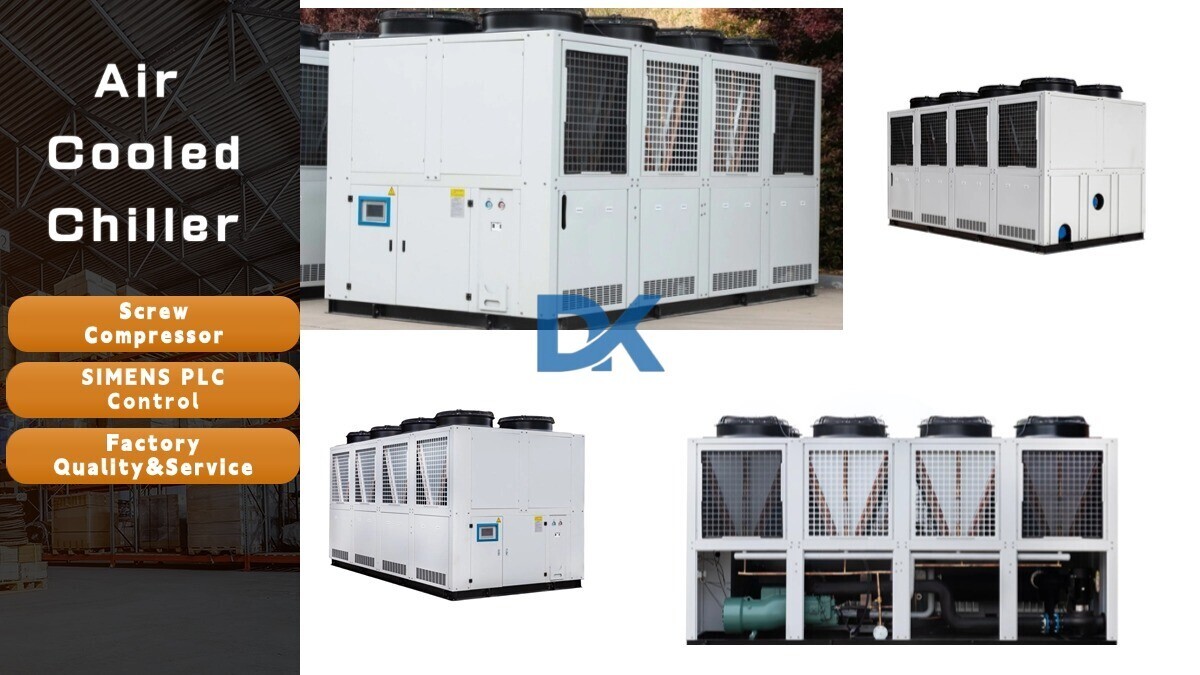

20TR to 150TR Air Cooled Industrial Chiller With Screw Type Compressors

Darko air cooled screw chiller is air cooled type and equipped with screw type compressor, featuring low noise & vibration, high efficiency and energy-saving.

Darko Energy efficient air-cooled chiller come with cooling capacity from 80KW to 1100KW, and widely used in many industrial process chiller such as plastic injection, plastic extruding,PVC manufacturing, chemicals, Acid-resistant industrial chiller, poultry processing, dairy milk, die casting, cement/concrete Cooling etc.

Industrial screw chiller are available in many models and cooling capacity. Just see following specifications in follows details for your considerations, or just contact us with your cooling requirements and our engineers will diagnose and select models as per your needs.

Air Cooled Water Chiller we supply is famous for its diverse number of features and advantages as given below:

1. Self-contained single or split chiller configuration assists to meet the needs of indoors and outdoors applications.

2. Heat is dissipated out from the system directly through ambient air present over the condenser configuring ultimate cooling of refrigerant.

3. The environment-friendly behavior of the chiller ensures the reliability and working efficiency featured by good quality refrigerant installation and SS compact design.

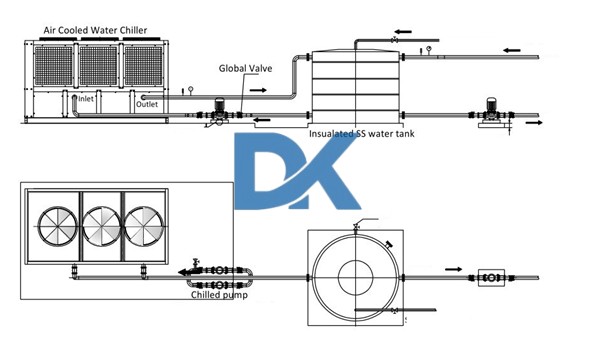

4. Water tank separately connected to the unit through water pipes and control unit ensuring the protection of the whole unit from any damage.

5. Copper coils and aluminum fins of condenser coils protect the condenser from corrosion ensuring high durability of the unit.

6. Chilled water collects the heat from the system and ultimately transfers it to the circulating air that spreads around to provide the heating effecting in winter.

Please check the next page for techncial specification details.

20TR to 150TR Air Cooled Industrial Chiller With Screw Type Compressors

7℃ Air Cooled Screw Chiller Specification (Single system)
Air Cooled Screw Chiller (Single System)
Model		DK-30AS	DK-40AS	DK-50AS	DK-60AS	DK-80AS	DK-100AS	DK-120AS	DK-160AS	DK-200AS
Cooling capacity	USRT	22.2	31.0	40.4	46.9	62.6	76.8	93.8	127.9	150.7
	Kcal/h	67080	93740	122120	141900	189200	232200	283800	38700	455800
	kw	78	109	142	165	220	270	330	450	530
Power Supply		3PH-380V-50Hz
Refrigerant	Type	R22/R407C
Refrigerant	Control	Thermostatic expansion valve
Compressor	Type	Semi-closed screw type
	Power(Kw)	29	38	48	55	73	86	106	142	165
	Start	Y-△
	Capacity Control	25%-50%-75%-100%
Evapoirator	Type	High efficiency copper tube shell and tube type
	Water Flow(m3/h)	13	19	24	28	38	46	57	77	91
	Inlet/Outlet	DN65	DN65	DN80	DN80	DN80	DN80	DN80	DN100	DN100
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
Condenser	Air Flow(m3/h)	30000	40000	50000	60000	80000	100000	120000	160000	200000
Protection System		Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L(mm)	2350	3200	3200	3300	3300	4400	3850	4750	5850
	W(mm)	1450	1450	1450	2300	2300	2300	2200	2200	2200
	H(mm)	2150	2150	2150	2400	2400	2400	2350	2450	2450
Weight	Kg	1800	1900	2300	2480	3200	3800	3300	4000	5000

Note:

1. The above specifications are measured under the following conditions: chilled water inlet temperature 12°C, outlet temperature 7°C.

2. The above specifications are subject to change due to product improvements without prior notice. If you have special requirements, please provide the required specifications before ordering.

Control System

DARKO has developed a highly intelligent PLC and PC-level computer control system, which can be used for remote monitoring and control. Simple operation, connect with power supply directly, with lower failure, and high safety factor, easy installation. User can set the parameter as real working need, intuitive and reliable; SIMENS PLC is workable.

Protection System:

Temperature control switch, high and low pressure switch, overload protection, compressor overheat protector, compressor frequent start protector and abnormal indicator light.

Compressor:

1. The compressor adopt a new high-efficiency screw type rotary compressor, which is 20-30% saving energy than ordinary compressors, we have long cooperation with HANBELL, BITZER, REFCOM,and etc.

2. Cooling capacity control can adopt four-stage (100%-75%-50%-25%) or three-stage (100%-66%-33%) and step-less control system.

4.Adopt special groove design of high-efficiency silicon steel, and equipped with internal and external omnidirectional design cooling flow, so that the compressor motor can exert the highest efficiency under any load.

3. Adopt kinds of refrigerant, except R22, also use eco-friendly type, such as R407c, R134a, R32 and etc.

Condenser

1.Equipped with high-efficiency transverse slit fins and internal threaded copper tubes, with high heat exchange efficiency and good stability.

2. Powerful fan make sure good heat exchanger in different ambient temperature, the fan will be control according to different condensing temperature need.

Evaporator

Shell and tube heat exchanger with higher cooling efficient, and good Insulation.

Internal with water pump and tank is optional.

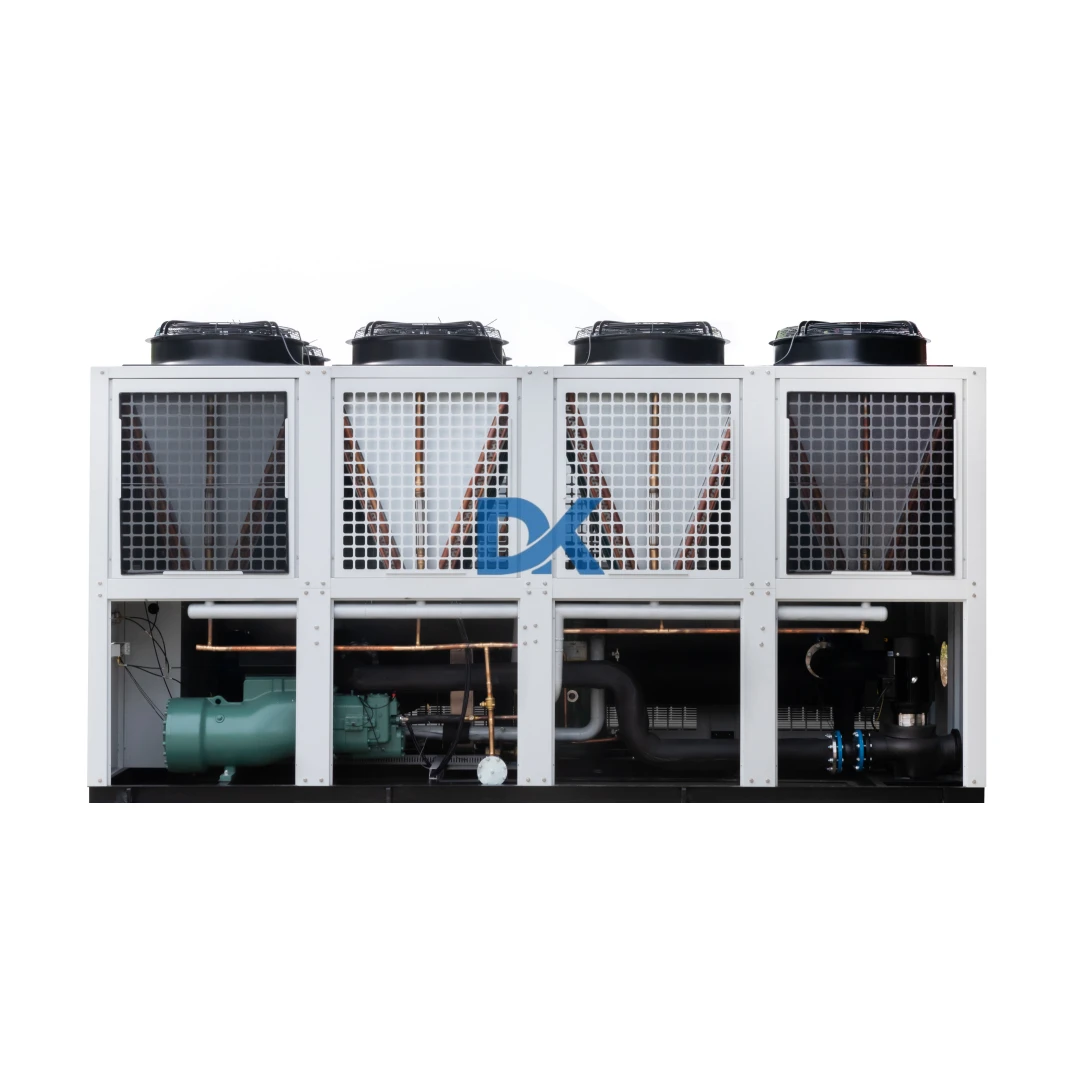

DARKO air cooled screw chillers adopt semi-hermetic screw compressor, which mainly solves the problem of large cooling capacity need. It is suitable for the working condition where is windy and sandy, and hard water quality. Small space and higher efficient. The air cooled screw chillers has a built-in screw compressor and a finned condenser, and equipped with a shell-and-tube high-efficiency heat exchanger and a low-frequency speed fan as standard.
