Portable Water Chiller 1HP~10HP Industry Process Chiller For Plastic Blowing

1. Portable Scroll Chiller Cooling Capacity: 2Kw~30Kw
2. Running Stable, High Efficiency, Easy Operate, Low Noise
3. Certifications: ISO 9001, CE
4. Environment Friendly Refrigerant: R22, R407c,R410A
5. Evaporator: High Efficiency Shell and tube, Or SS Tank with coil
6. Compressor: Energy-Efficient Hermetic Scroll
7. No need maintenanceCompletely protection system for the industrial chiller

Email

Inquiry Now

Description

Technical Parameters

Detail Images

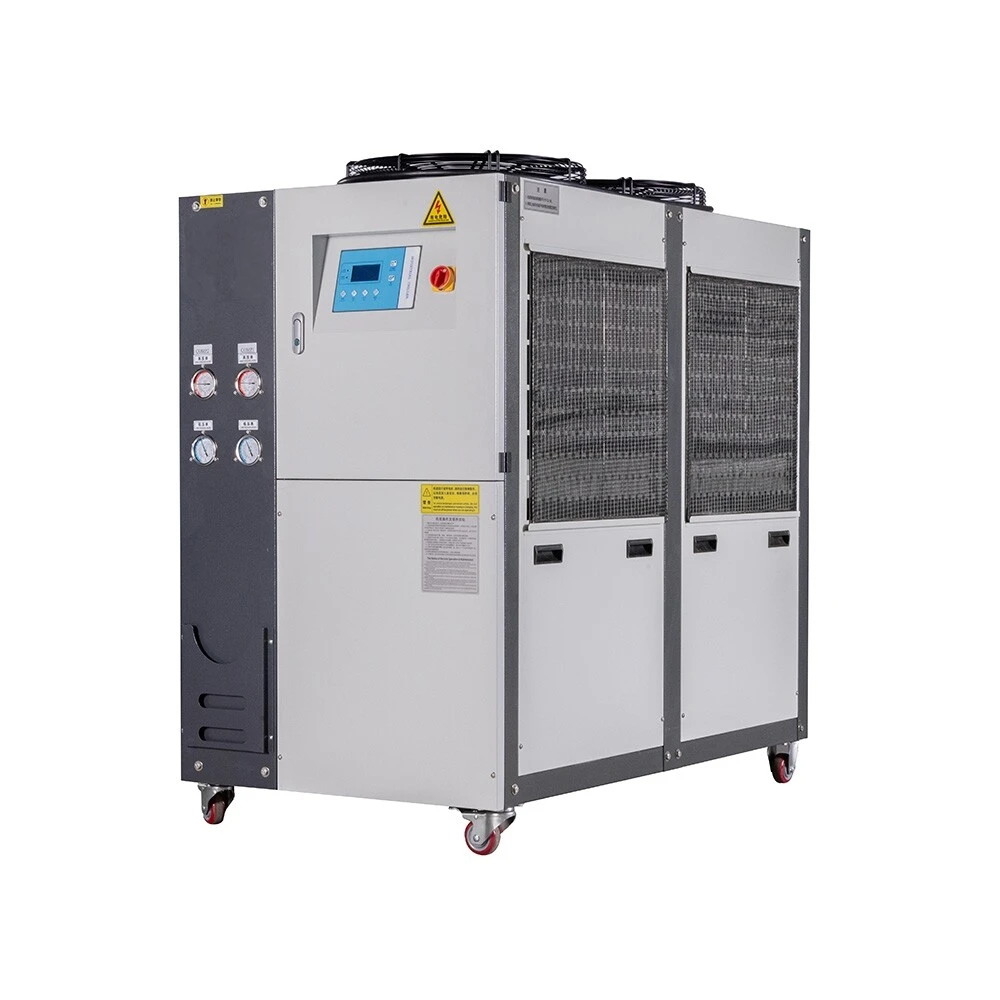

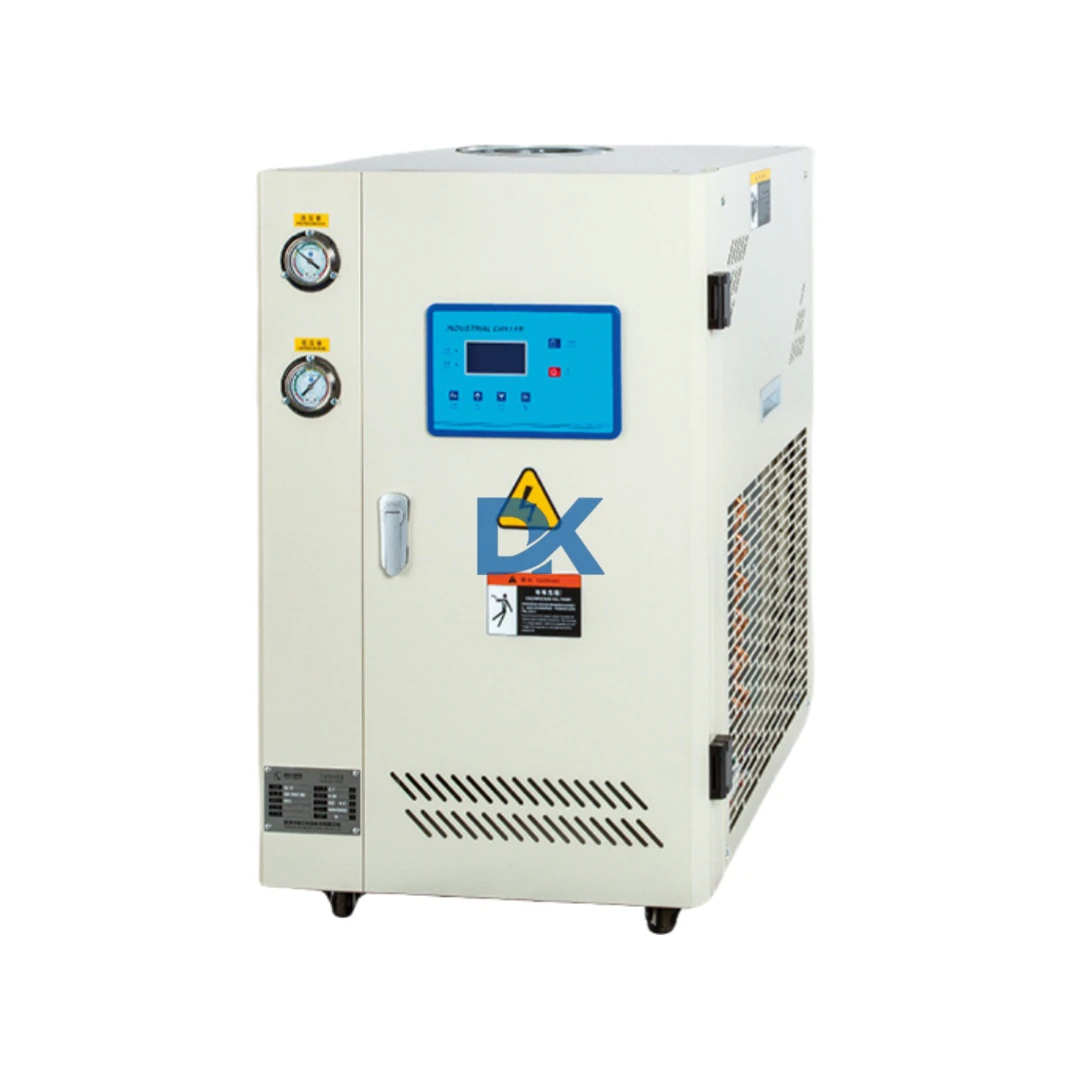

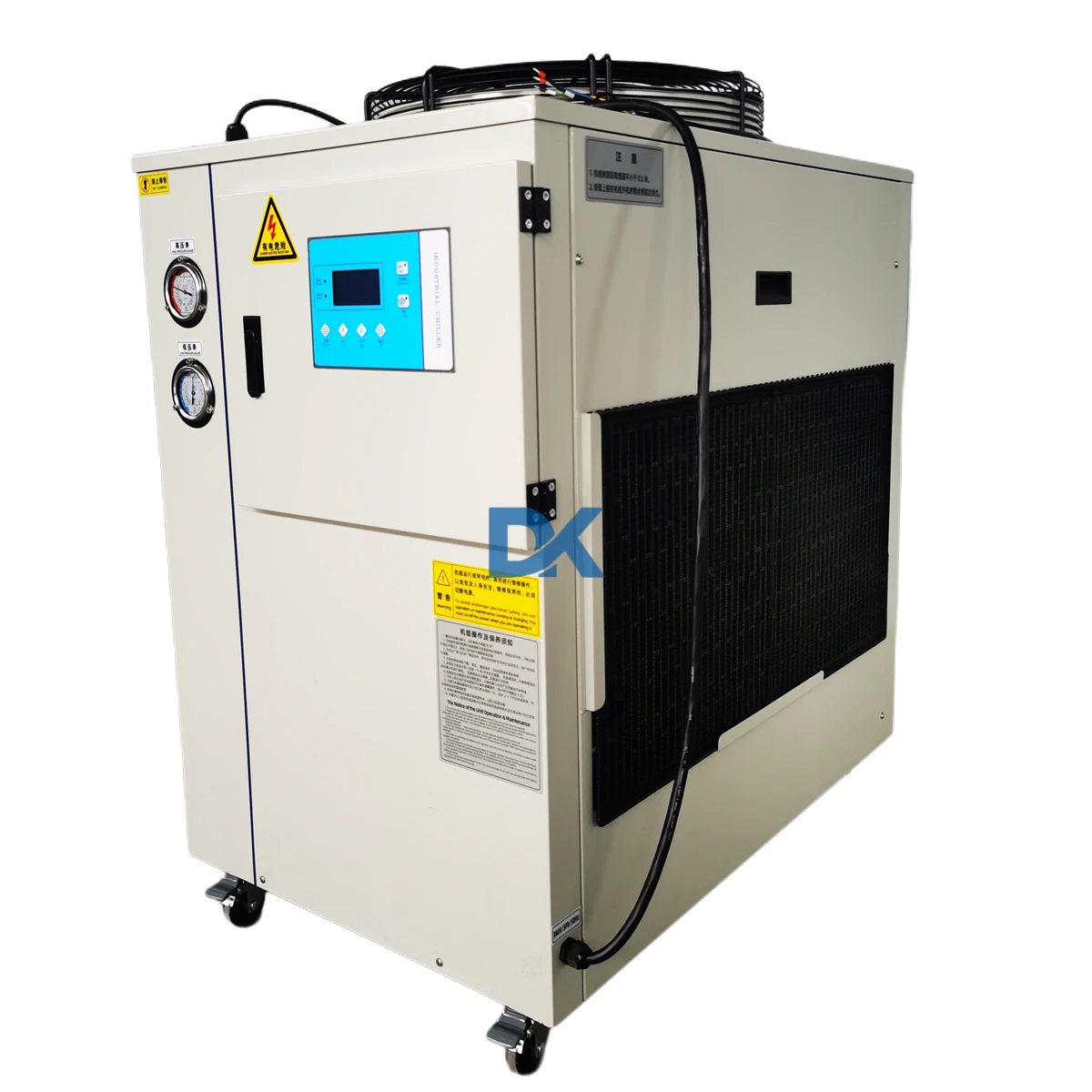

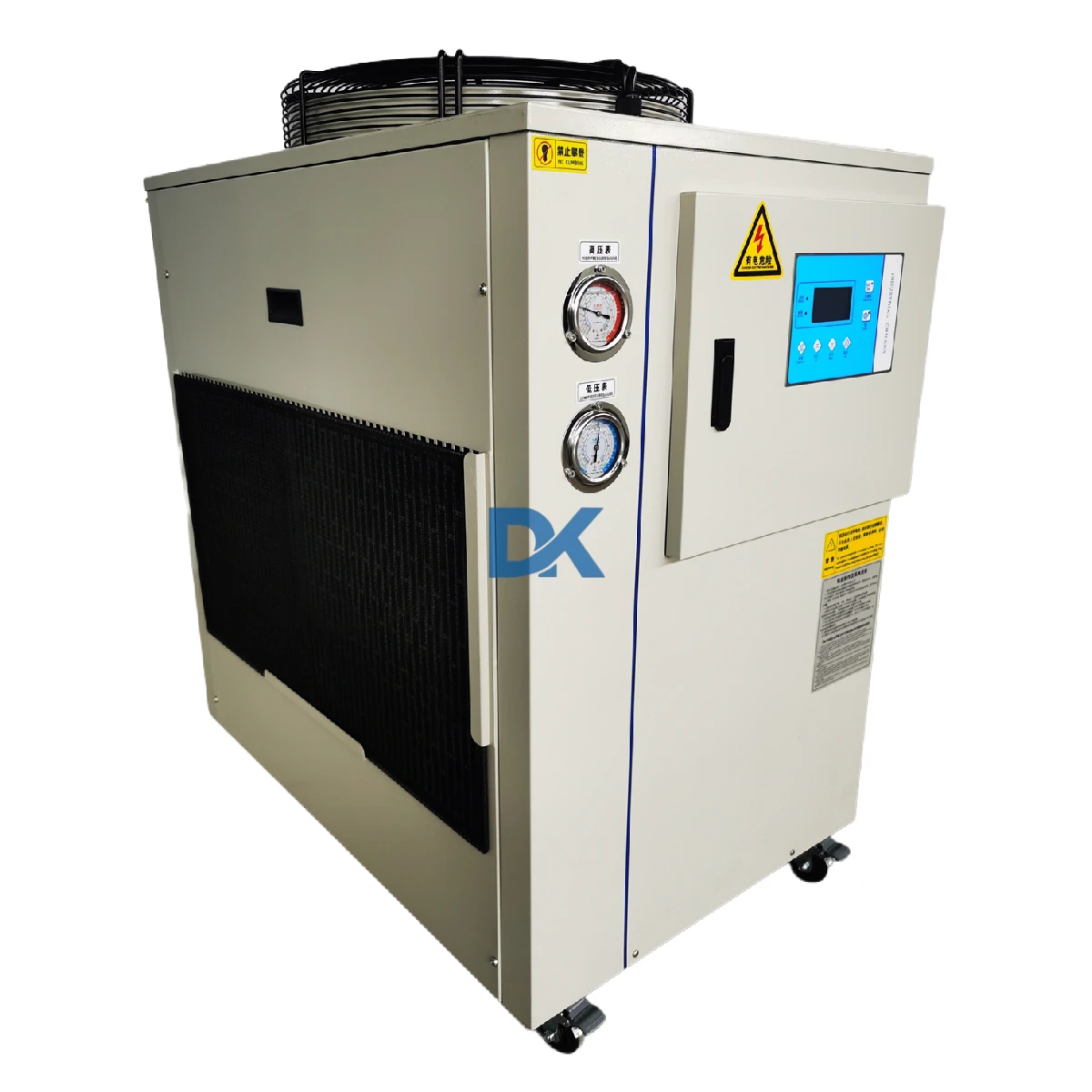

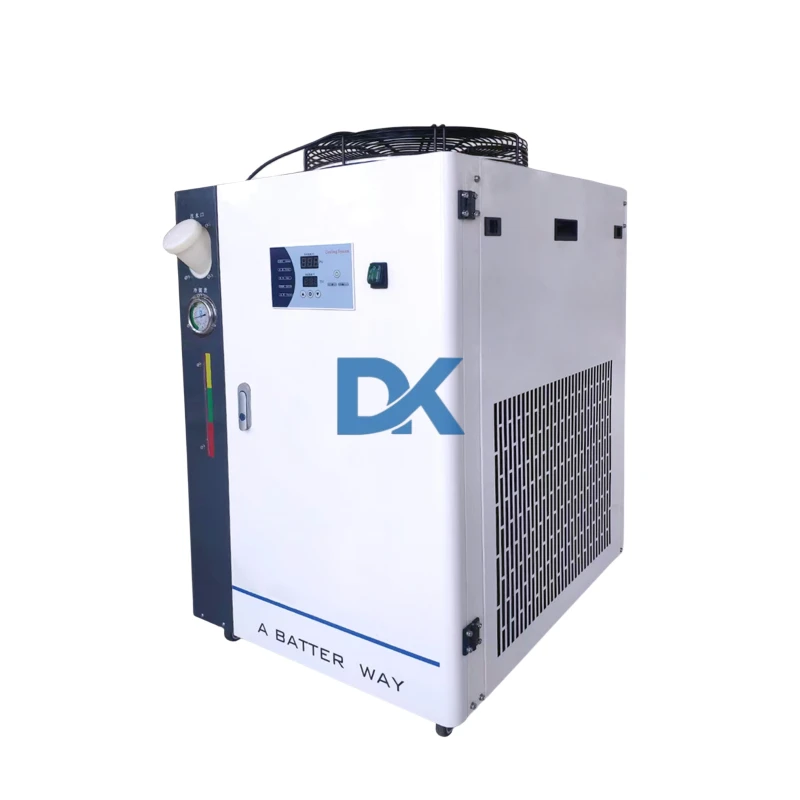

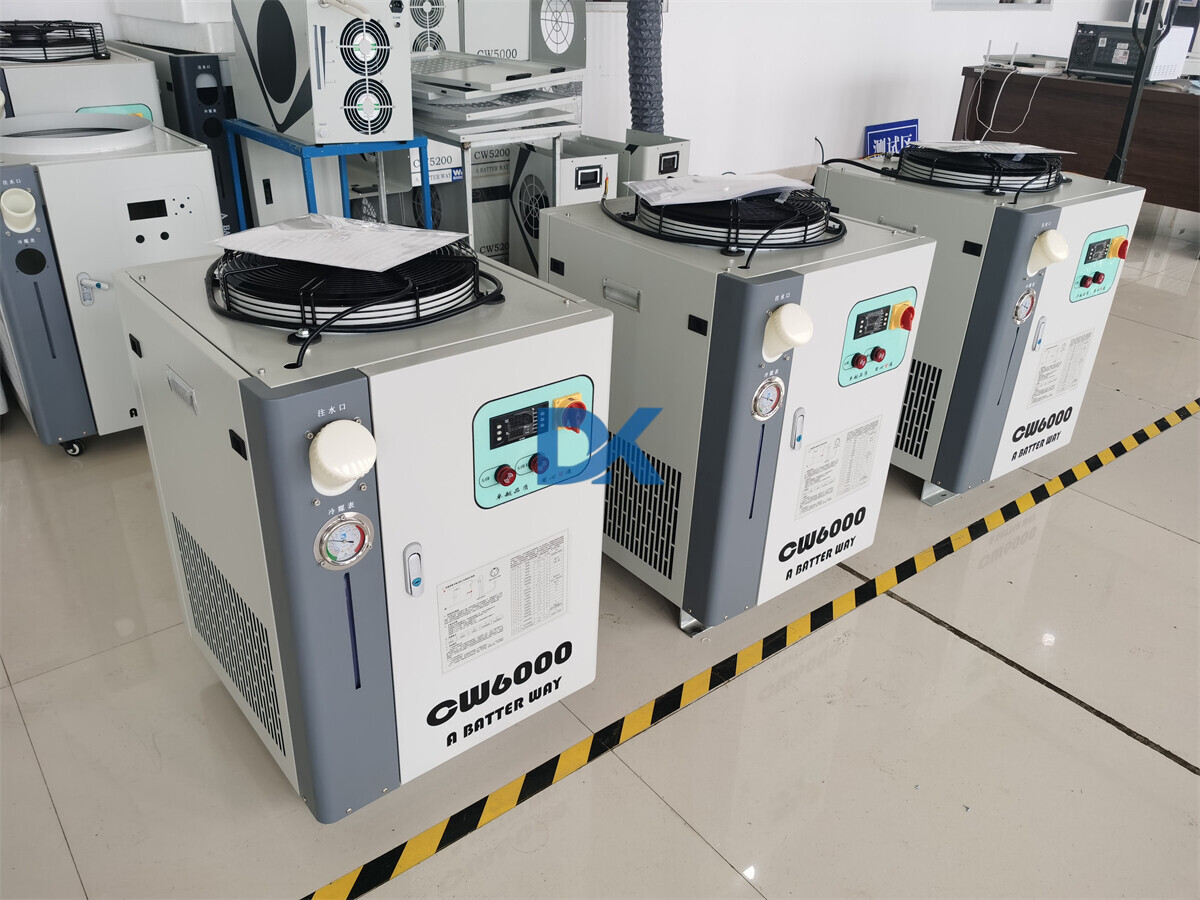

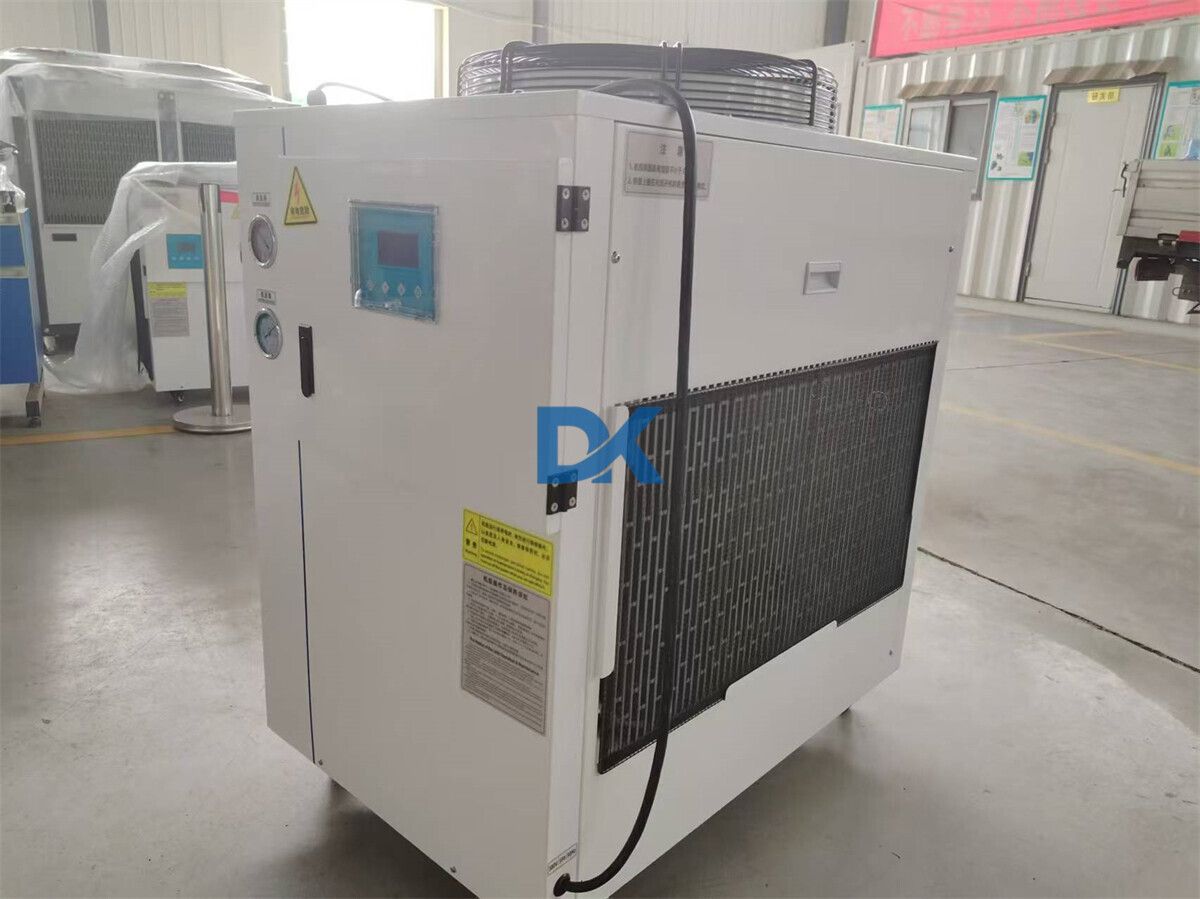

DARKO Portable Air Cooled Chiller Unit
The cooling capacity ranges from 2 kW to 30 kW (1HP~10HP), widely applicable to injection molding machines, blow molding machines, thermoforming plastics, extruders, CNC machining centers, anodizing, CT scanning, die casting, oil cooling, printing, welding, and powder metallurgy industries.

Scroll Chiller Compressor
Equipped with globally renowned fully enclosed scroll compressors, delivering 20-30% higher energy efficiency compared to reciprocating compressors. Features stable operation, high reliability, superior efficiency, minimal failures, low vibration, quiet performance, and easy maintenance. Compressors automatically alternate operation based on load variations, balancing runtime across units to significantly extend chiller lifespan.

Evaporator
Three configurations available to meet diverse connectivity needs:

Stainless steel tank coil type

Shell and tube type with internal/external threaded copper tubes (smooth inner surface for enhanced refrigeration efficiency

Stainless steel plate heat exchanger
All evaporators feature 25mm PE insulation panels to prevent condensation and minimize cooling loss.

Condenser
Incorporates high-efficiency corrugated fins and inner-grooved copper tubes for optimal heat exchange performance and operational stability.

Protection Systems

Temperature control switch

High/low pressure switch

Overload protector

Compressor overheating protector

Compressor frequent-start prevention

Malfunction indicator

Microcomputer Control System

DARKO's self-developed intelligent PLC/PC-level control system enables:

Remote monitoring capability

Plug-and-play operation with low failure rate

User-friendly parameter customization

High safety standards and easy installation

Mobile Industrial Chiller Cabinet Design

CNC precision-engineered panels; Electrostatic powder coating for premium aesthetics ; Excellent noise insulation performance

Portable Water Chiller 1HP~10HP Industry Process Chiller For Plastic Blowing

Model		DK-1A	DK-2A	DK-3A	DK-5A	DK-6A	DK-8A(D)	DK-10A(D)
Cooling capacity	Kcal/h	2322	4472	7310	11266	13115	17458	24510
Cooling capacity	Kw	2.7	5.2	8.5	13.1	15.3	20.3	28.5
Input Power	Kw	1.42	2.40	3.53	5.61	6.64	8.52	10.83
Power Supply		1PH-220V-50Hz			3PH-380V-50Hz
Refrigerant	Type	R22/R407C/R410a
Refrigerant	Control	Thermostatic expansion valve(Capillay)
Compressor	Type	Hermetic rotary type			Hermetic scroll type
Compressor	Power(Kw)	0.88	1.7	2.95	4.54	5.4	3.6*2	4.54*2
	Type	SS Tank with coil or Shell and tube Or Plate Heat Exchanger
Evapoirator	Flow(m3/h)	0.46	0.89	1.46	2.25	2.61	3.48	4.89
	Capacity(L)	25	20	50	70	70	120	200
	Inlet/Outlet	DN20	DN20	DN20	DN20	DN25	DN25	DN25
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
Condenser	Power(Kw)	0.095	0.095	0.25	0.52	0.52	0.24*2	0.52*2
Pump	Type	Centrigual water pump
	Power(Kw)	0.37	0.37	0.37	0.55	0.55	0.75	0.75
	Lift(m)	20	20	20	20	20	20	20
Protection System		Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L (mm)	650	650	700	900	900	950	1560
	W (mm)	540	540	550	850	850	900	850
	H (mm)	850	850	1000	1800	1800	1900	1500
Weight	Kg	86	92	150	200	230	310	450

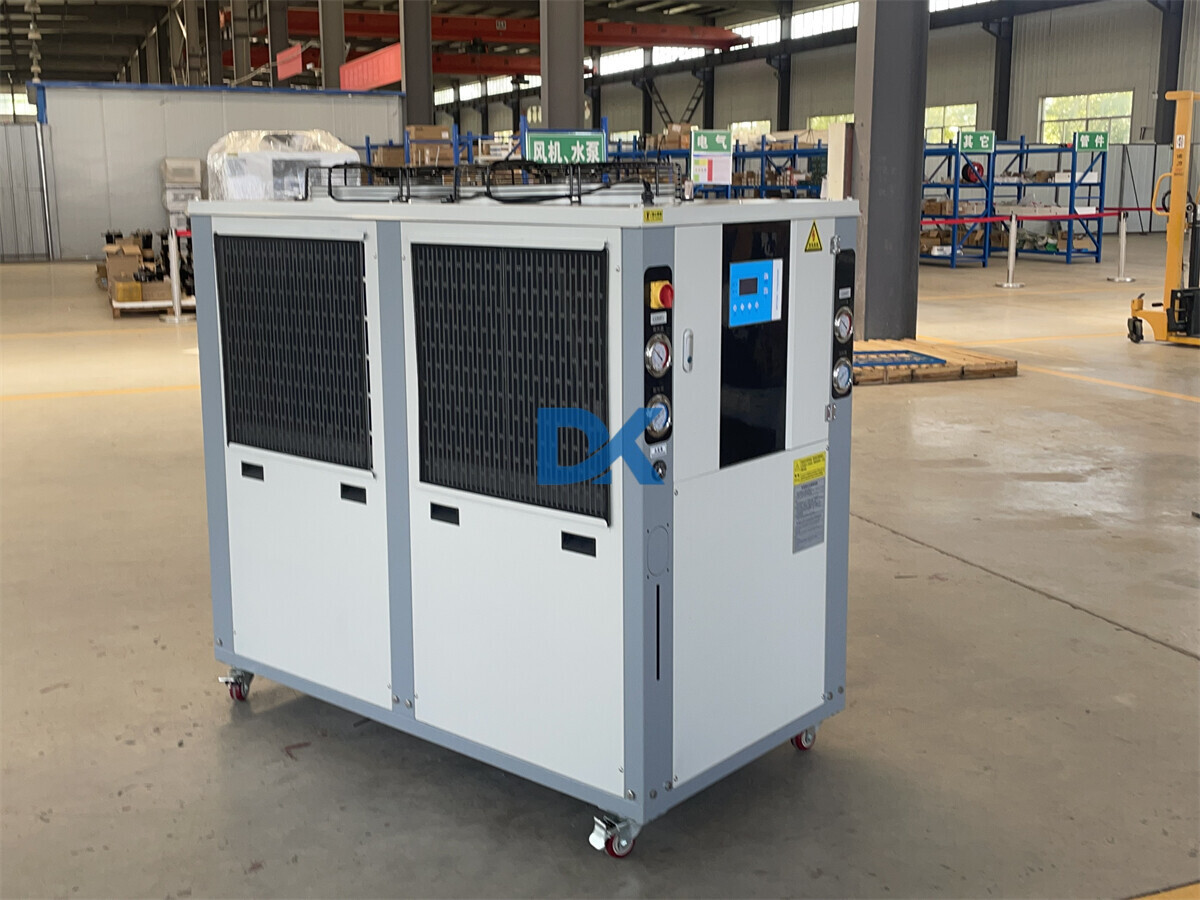

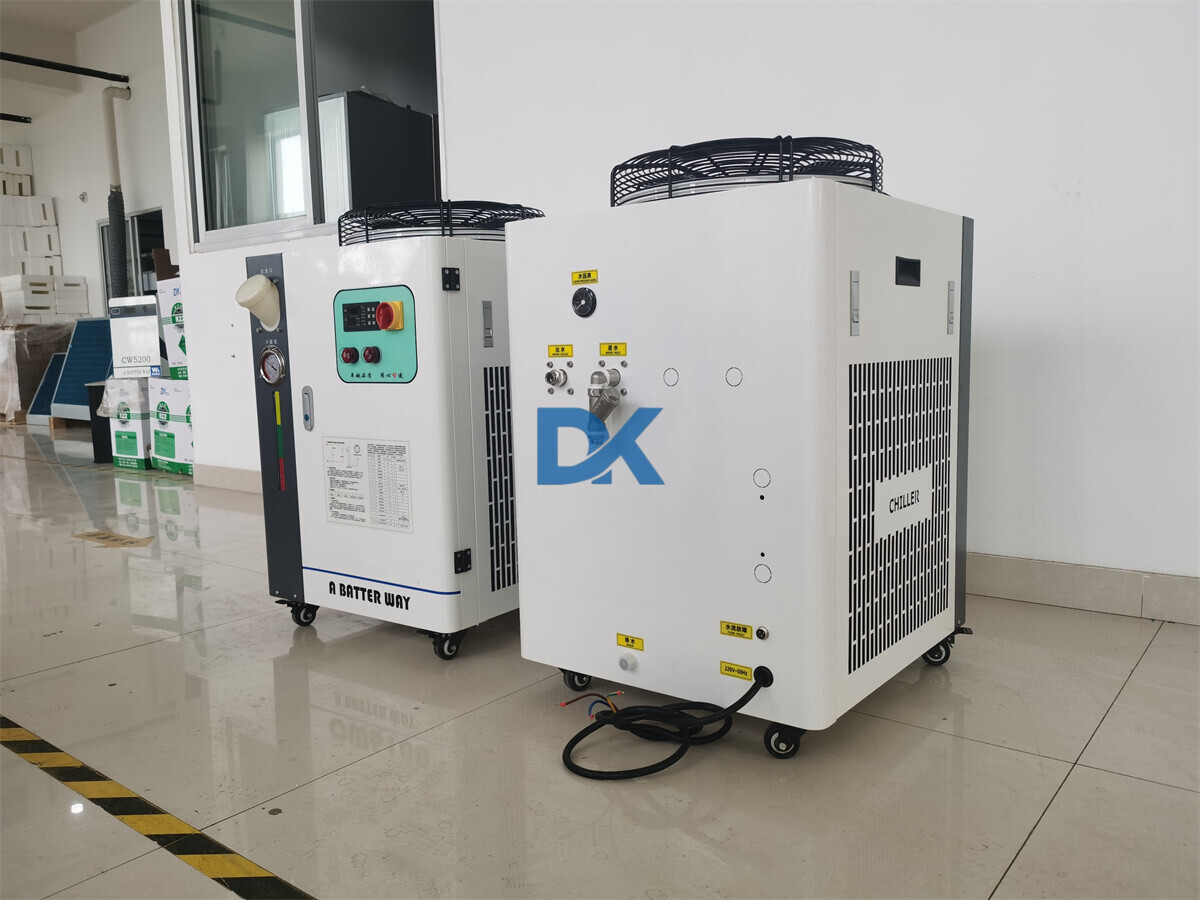

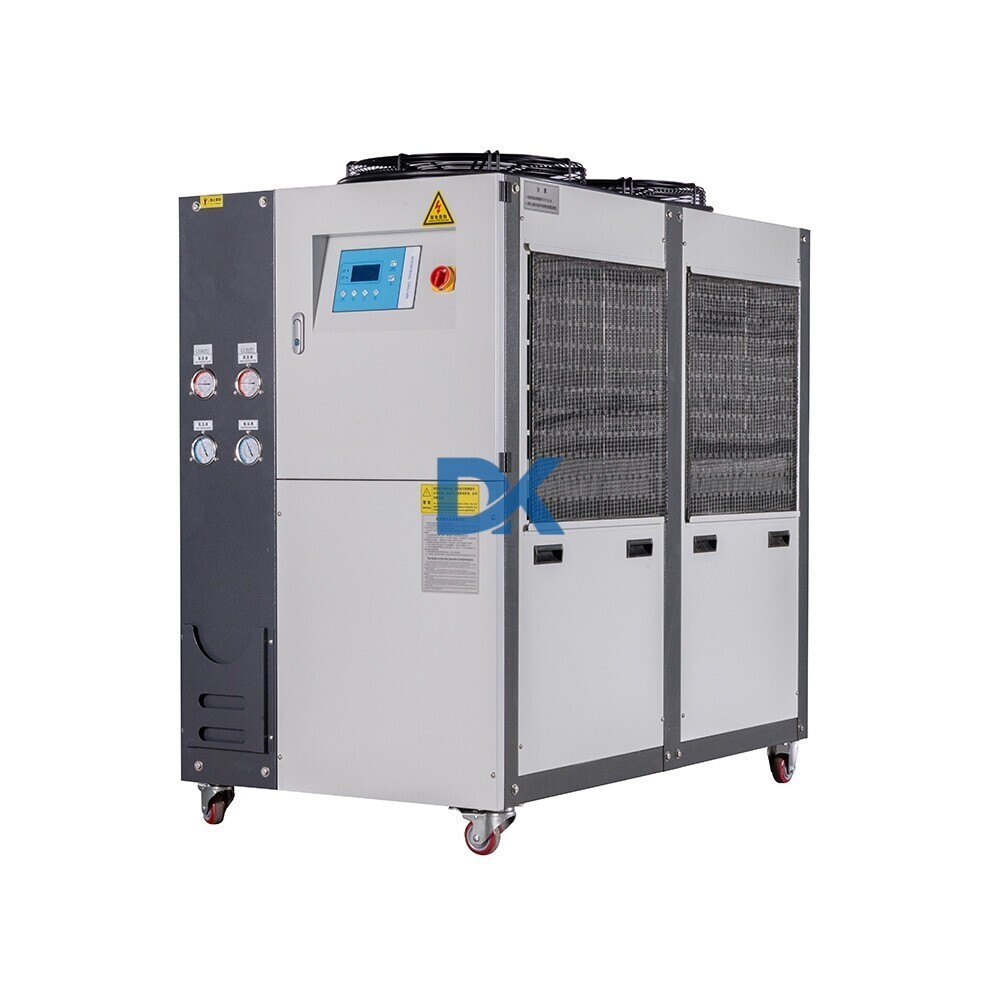

Industrial Air Cooled Chiller For Injection Molding Or Various Of Industry Processing Cooling

Micro-Computer control system:

DARKO has developed a highly intelligent PLC and PC-level computer control system, which can be used for remote monitoring and control.

Simple operation, connect with power supply directly, with lower failure, and high safety factor, easy installation. User can set the parameter as real working need, intuitive and reliable.

Chiller Panel

Schneider Electric Components

Pressure Gauge

Compressor

1. It adopt the world famous brand hermetic scroll type compressor, which can saving 20-30% energy than the reciprocating compressor.

2. It's running more stably, reliably, with high efficiency, fewer failures, less vibration, lower noise and easy maintenance.

3. The compressors can automatically running alternately according to the load change, to balance the running speed of each compressor, and greatly extend the service life of the chiller.

Heat Exchanger

It adopts internal and external threaded tubes, the inner surface of the copper tube is threaded and surface is smooth, the cooling efficiency is higher.

The outside of the evaporator is insulated with 25mm thick PE insulation board, no condensation, and small loss of cooling capacity.
