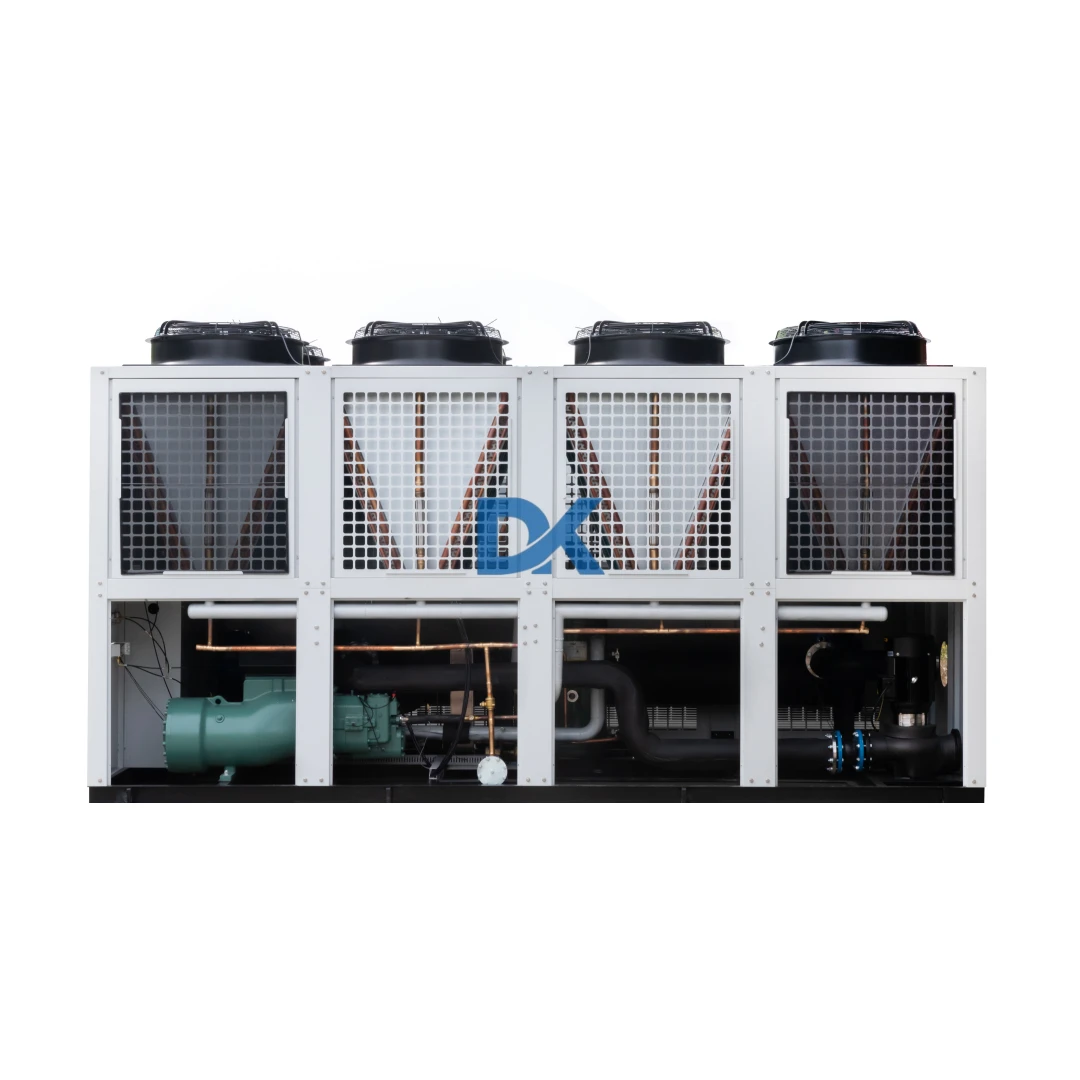

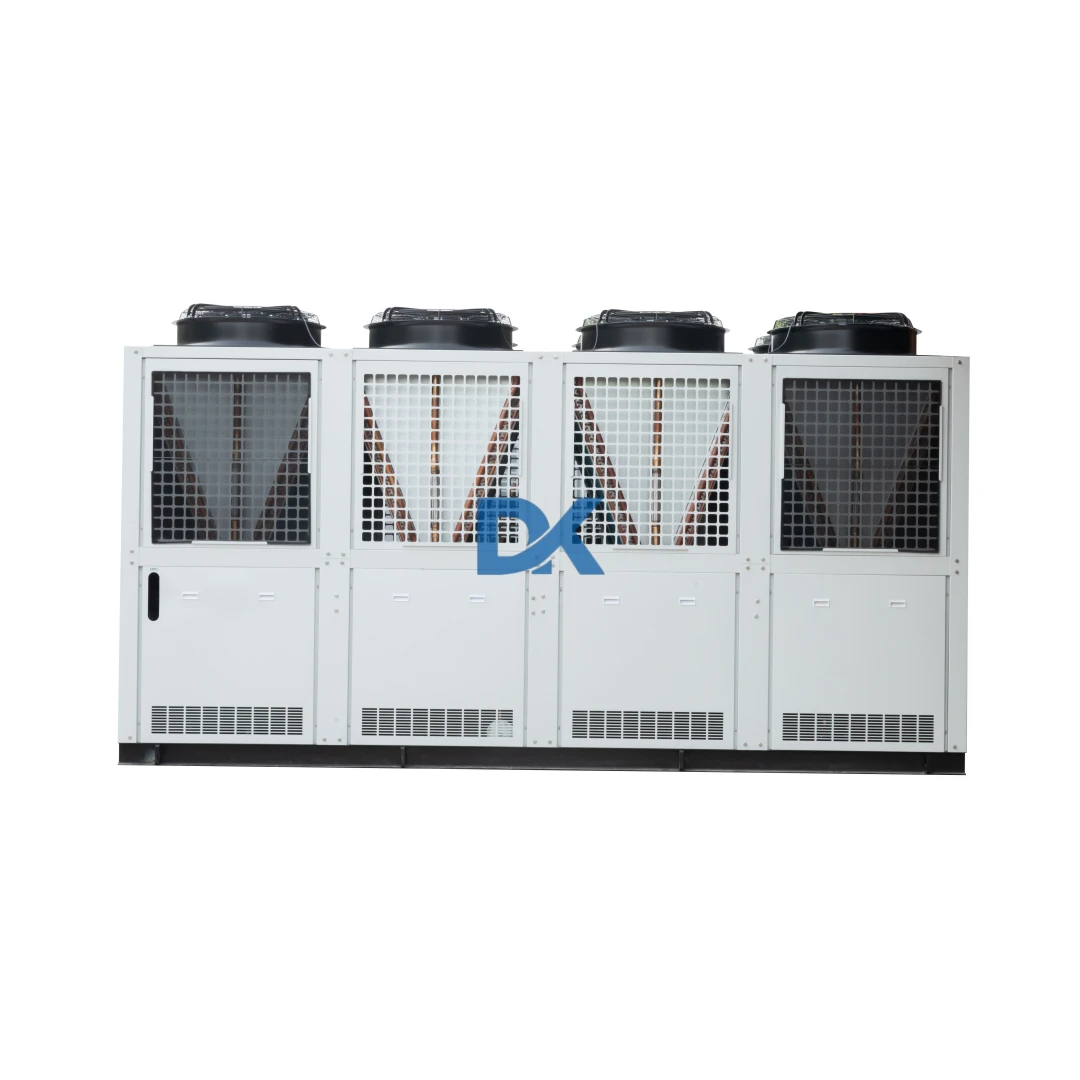

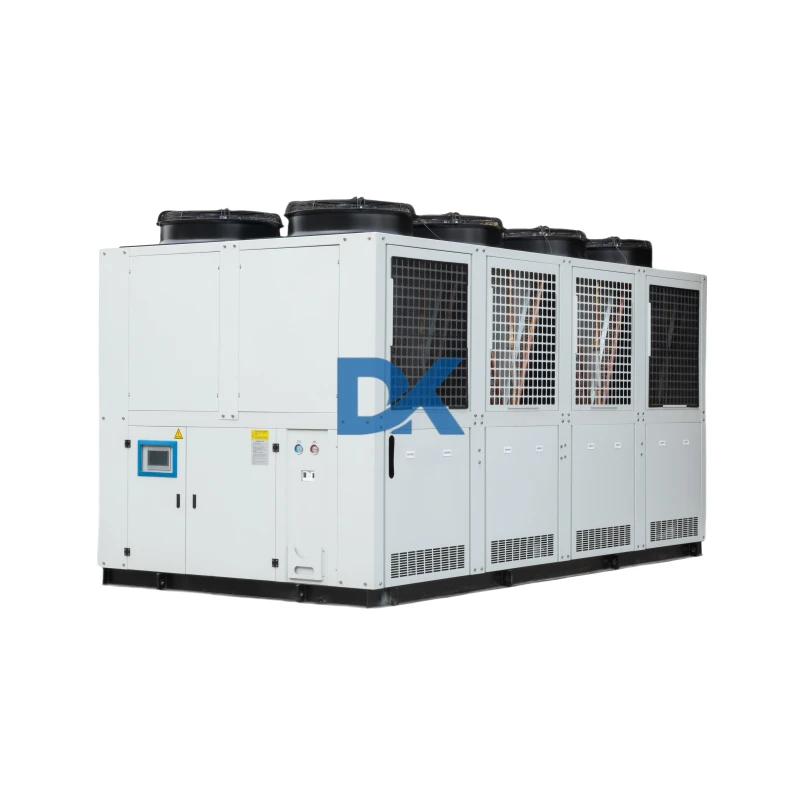

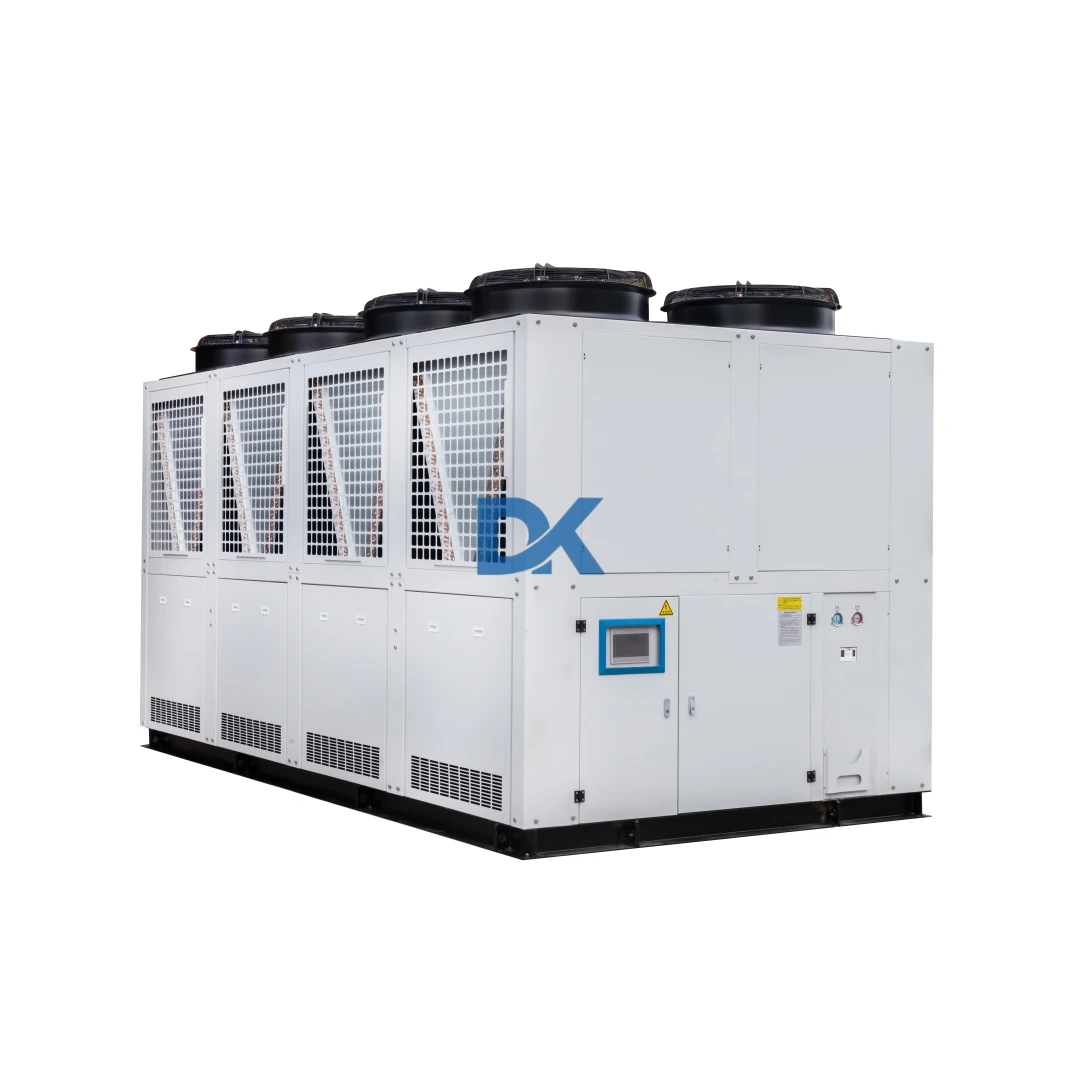

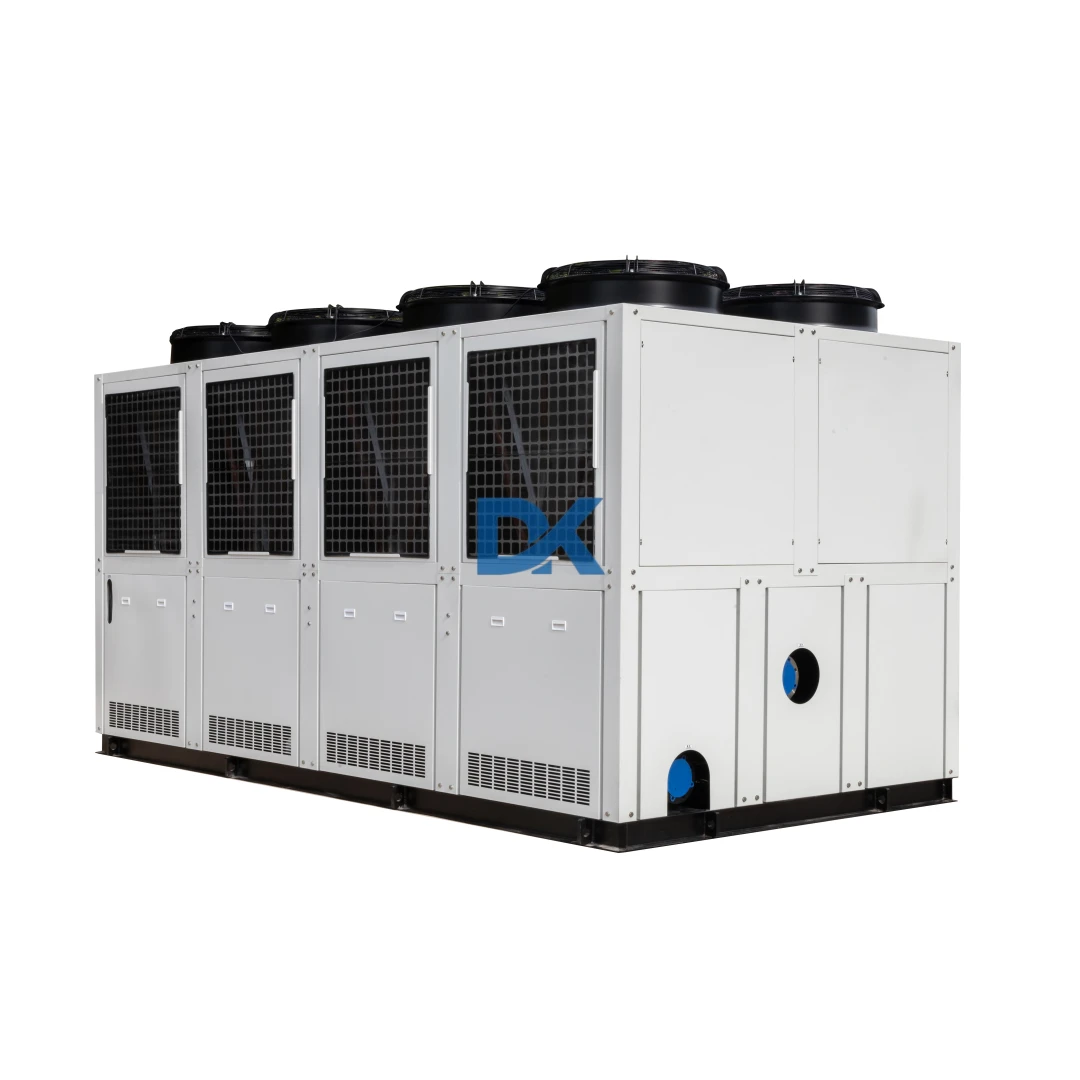

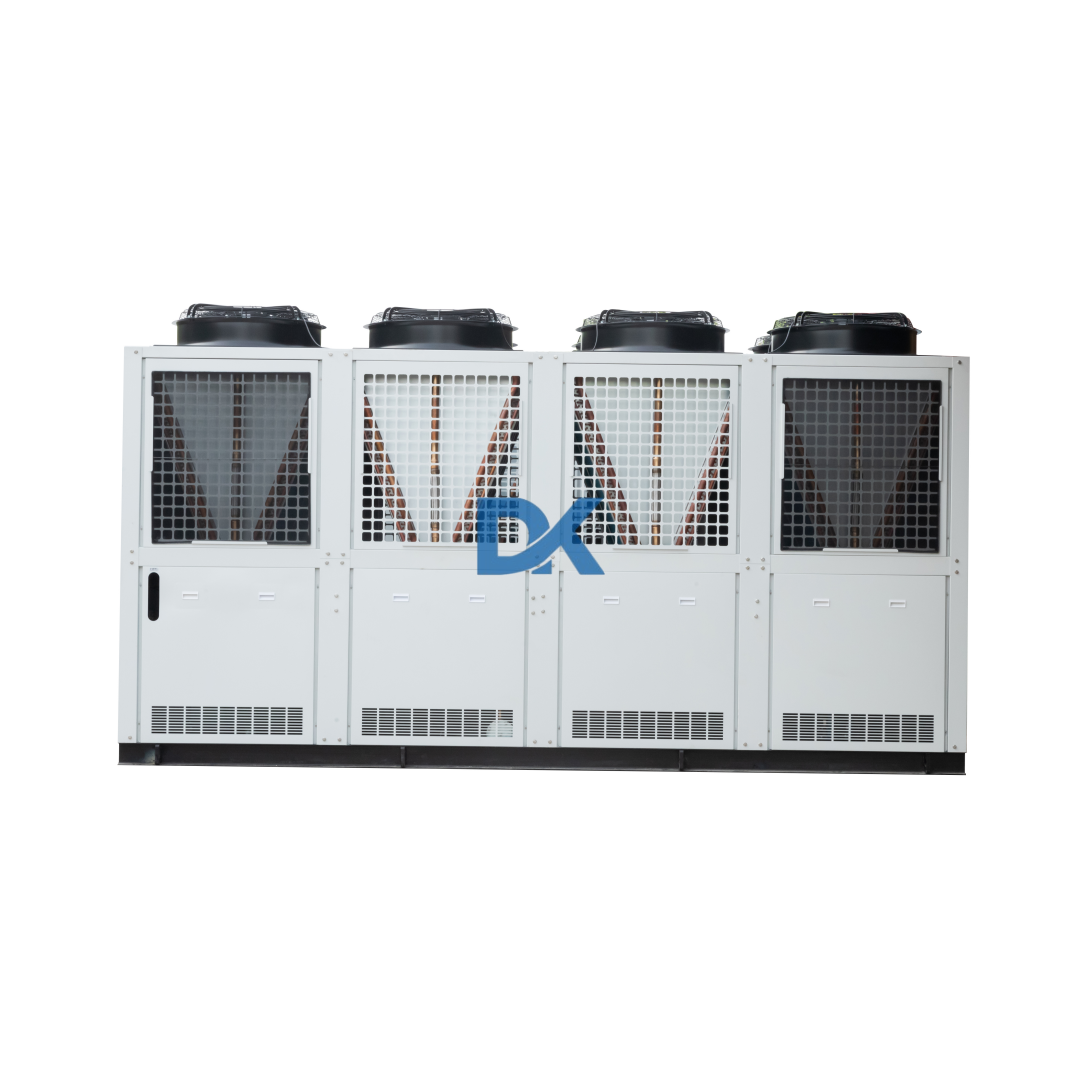

0℃/-5℃/-10℃ Air Cooled Glycol Chiller For Beverage Production Screw Compressor For Larger Capacity

This Glycol Cooling System Outlet Temperature: 0℃ / -5℃ / -10℃
Widely Application: Dairy / Milk Process Cooling, Beverage Production, Brewery, Food Process, Pharmaceutical, Chemical Plants etc.
High Efficiency Copper Tube Shell And Tube Type Evaporator
Energy-efficient Hanbell/Bitzer screw compressorcompressor
Environmental friendly R407c, R134a, R410a refrigerant
Air Cooled Type Condenser, Will No need Connect With Cooling Tower, Easy installation
Low maintenance cost

Email

Inquiry Now

Description

Technical Parameters

Detail Images

0℃/-5℃/-10℃ Air Cooled Glycol Chiller For Beverage Production Screw Compressor For Larger Capacity

Features

1. Ultra-Low Temperature Design

2. Precise Temperature Control

3. Customizable Cooling Capacity/Voltage

4. Independent Design for Easy Installation

5. For fermentation beverage facilities including craft breweries, distilleries, wineries, and cideries, we provide customized chillers tailored to your cooling capacity requirements.

Our engineers understand your fermentation processes and, drawing on extensive experience, can help you select the optimal chiller system tailored to your specific needs, thereby minimizing costs. For example, key considerations when choosing a chiller include: the required temperature during production, brewery capacity, the number and volume of fermentation tanks, and the quantity and capacity of conditioning tanks.

Applications:

Craft Breweries – Wort cooling, fermentation temperature control, vessel/keg cooling, pre-packaging cooling, storage cooling

Wineries – Fermentation process cooling, room cooling

Cideries – Fermentation temperature control, juice cooling, storage cooling

Distilleries – Fermentation process cooling, still tank and condenser cooling

Or any other industry which is the cooling capacity and outlet temeperature sutiable.

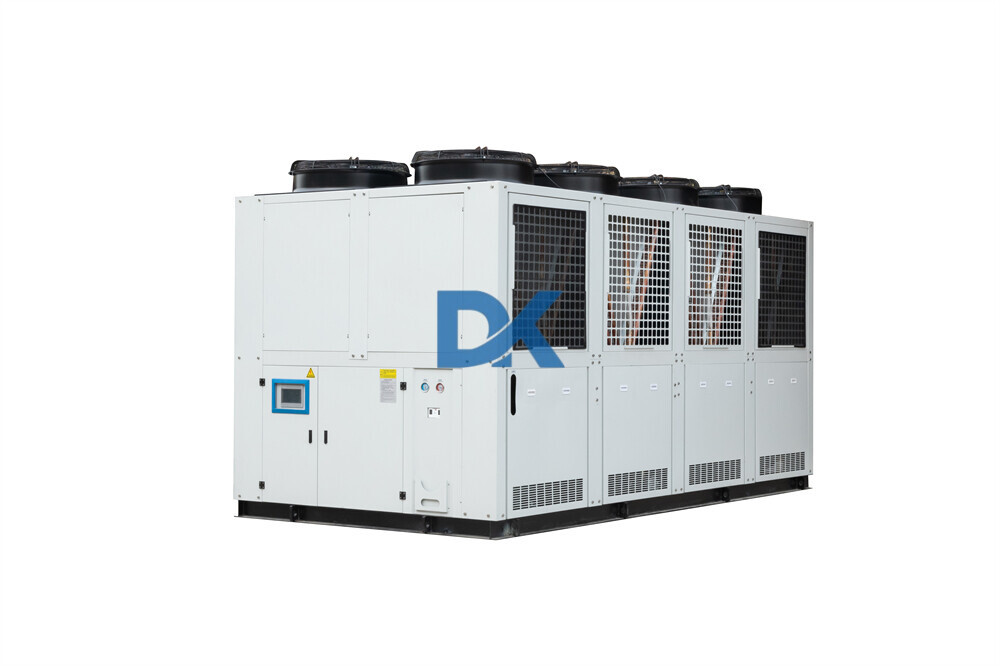

0℃/-5℃/-10℃ Air Cooled Glycol Chiller For Beverage Production Screw Compressor For Larger Capacity

0℃, -5℃, -10℃ Air Cooled Screw Glycol Chiller Specification (Single system)
Air Cooled Screw Chiller (Single System)
Model		DK-80AS	DK-40AS	DK-50AS	DK-60AS	DK-80AS	DK-100AS	DK-120AS	DK-160AS	DK-200AS
Cooling capacity	At 0℃ Outlet (Kw)	68	95	125	135	180	225	275	380	460
	At -5℃ Outlet (Kw)	58	80	100	112	150	190	230	310	380
	At -10℃ Outlet (Kw)	46	65	85	90	125	155	190	260	315
Power Supply		3PH-380V-50Hz
Refrigerant	Type	R22
Refrigerant	Control	Thermostatic expansion valve
Compressor	Type	Semi-closed screw type
	At 0℃ Outlet Power(Kw)	30	41	52	55	72	87	106	142	174
	At -5℃ Outlet Power(Kw)	29.5	40	50	54	70	86	103	136	168
	At -10℃ Outlet Power(Kw)	28	38	43	51	69	83	100	134	164
	Start	Y-△
	Capacity	25%-50%-75%-100%
Evaporator	Type	High efficiency copper tube shell and tube type
	At 0℃ Outlet Water Flow(m3/h)	13	18	24	26	34	43	52	72	87
	At -5℃ Outlet Water Flow(m3/h)	11	16	19	22	29	37	45	60	74
	At -10℃ Outlet Water Flow(m3/h)	9	13	17	18	25	31	38	52	63
	Inlet/Outlet	DN50	DN65	DN80	DN80	DN80	DN80	DN80	DN100	DN125
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
Condenser	Air Flow(m3/h)	30000	40000	50000	60000	70000	100000	120000	150000	180000
Protection System		Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L(mm)	2350	3200	3200	3300	3300	4400	3850	4750	5850
	W(mm)	1450	1450	1450	2300	2300	2300	2200	2200	2200
	H(mm)	2150	2150	2150	2400	2400	2400	2350	2450	2450
Weight	Kg	1800	1900	2300	2480	3200	3800	3300	4000	5000

Compressor Details Of The Dairy Processing Glycol Chiller:

(1) All Darko Air-cooled screw chillers utilize globally renowned semi-hermetic screw and reciprocating compressors from premium brands such as Hanbell, Bitzer, and REFCOMP.

(2) Featuring a 5:6 gear ratio dual-screw configuration and advanced linear design, these compressors achieve energy efficiency, environmental compliance, superior performance, and ultra-low noise levels (<55 dB(A)).

(3) Configurable with single or dual compressor circuit systems based on cooling capacity requirements. The compressors automatically alternate operation in response to load variations, ensuring balanced runtime distribution across units. This intelligent design extends equipment service life significantly, delivering >45,000 hours of maintenance-free operation.

Water Cooled Glycol Chilling System Hanbell Brand Compressor

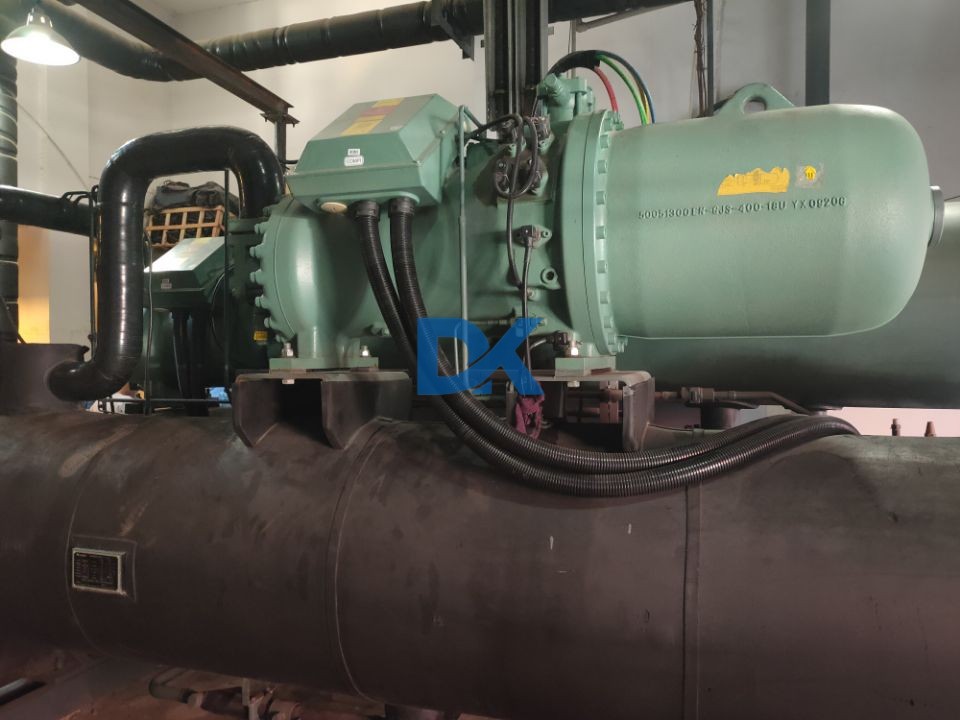

Glycol Refrigeration Unit Bitzer Brand Compressor

Evaporator

(1) HIgh Efficient Shell and tube heat exchanger with 10mm Insulation;

(2) According to customer project need, can internal with water pump, or external the water pump.

(3) We will supply the complete set if need external water tank, or any other accessories.

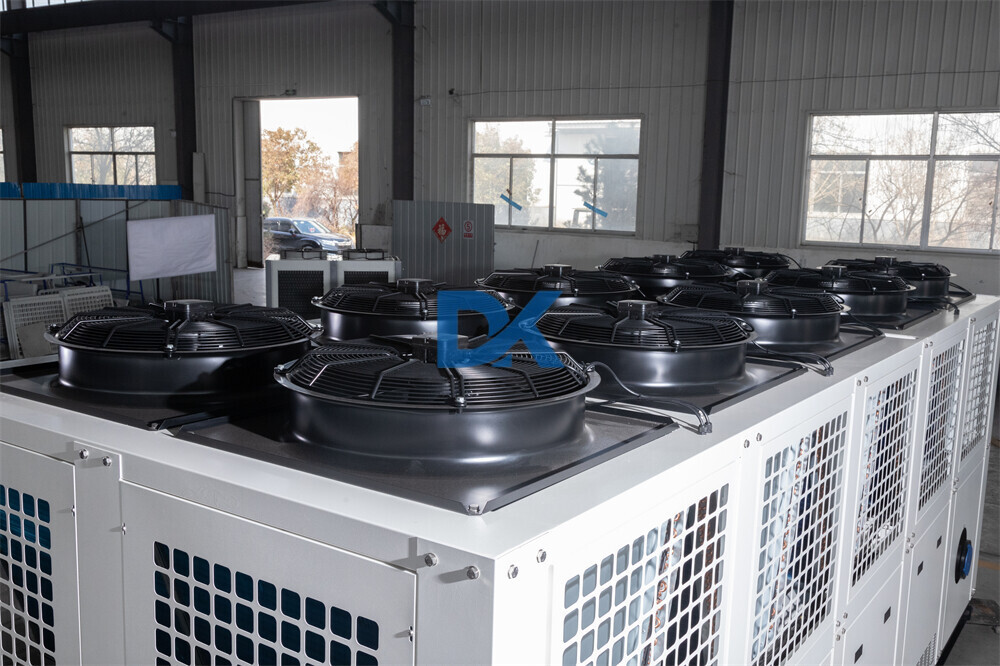

Condenser

Equipped with high-efficiency transverse slit fins and internal threaded copper tubes, with high heat exchange efficiency and good stability.

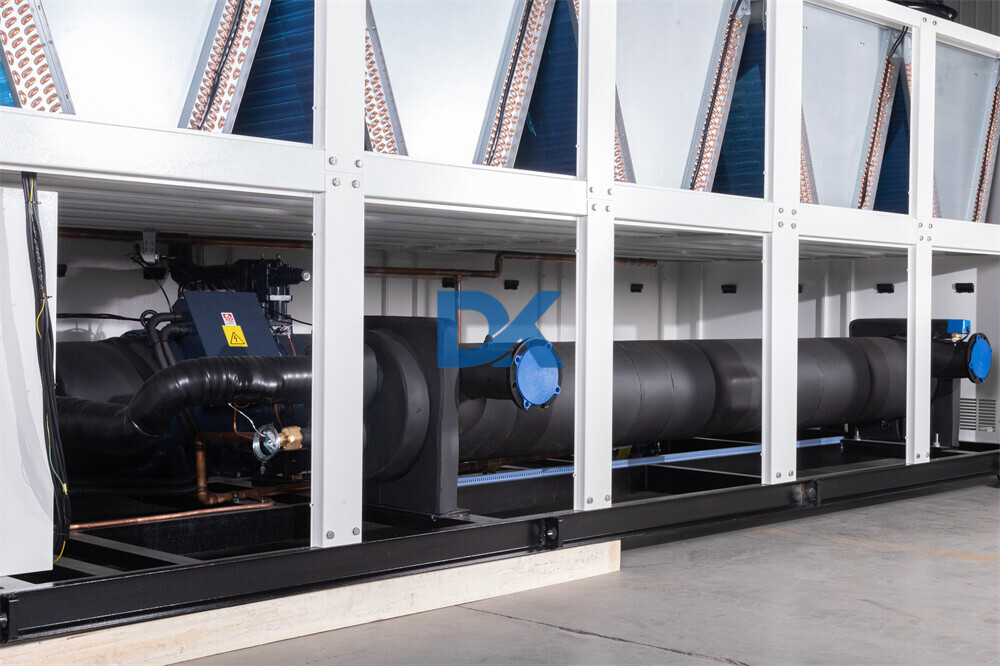

Industrial Glycol Chiller Shell And Tube Evaporator

Ethylene Glycol Chiller Air Cooled Condesner

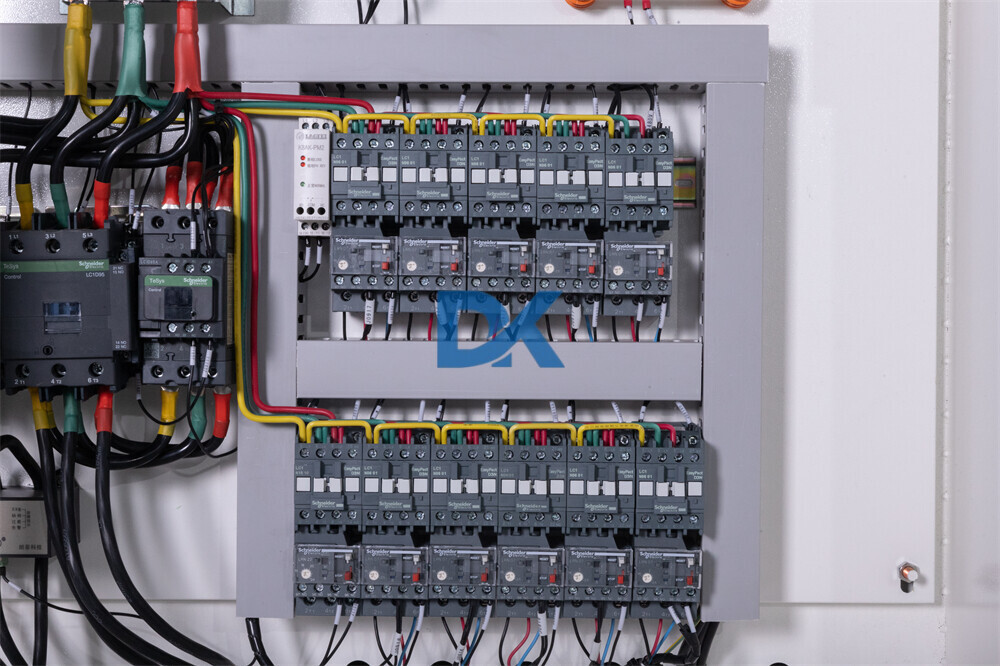

Glycol Cooling System Control Cabinet

Glycol Refrigeration Schneider Electric

Protection Systems:

Integrated safeguards include:

Temperature/pressure limit switches (ASME B31.3 compliant)

Dual-stage overload protectors (IEC 60947-4-1 certified)

Compressor anti-short-cycle modules (≥15-minute restart delay)

Multi-color HMI fault indicators (IP65 rated)

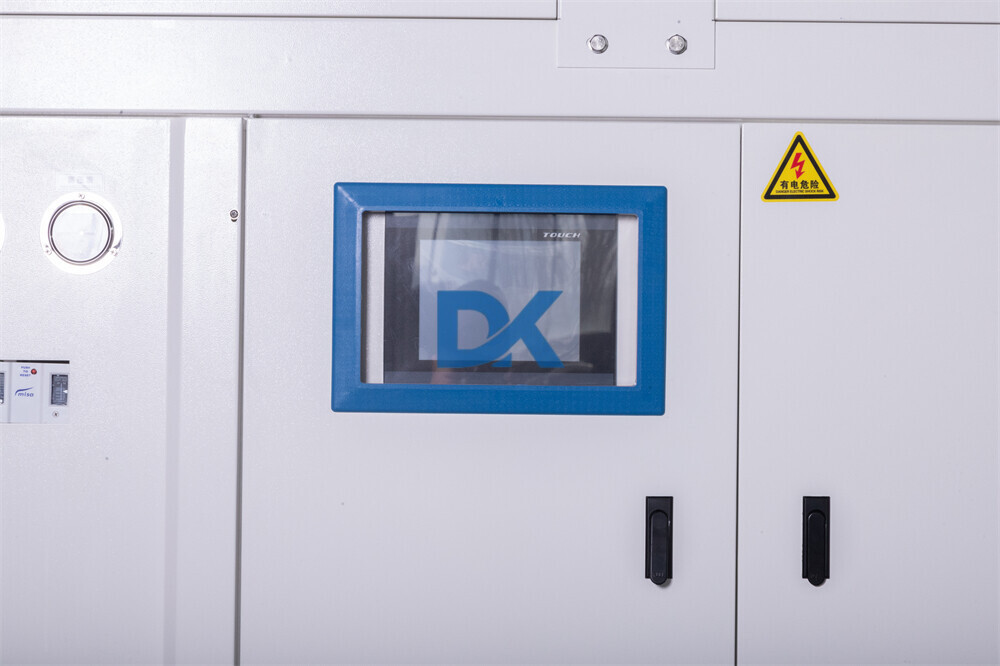

Control System:

Darko's proprietary PLC-PC hybrid control platform enables:

SCADA-compatible remote monitoring (Modbus RTU/TCP protocols)

Plug-and-play installation (CE/UL listed components)

Siemens S7-1200 PLC integration (optional)

User-defined parameterization via 10.1" industrial HMI (EN ISO 13849-1 PLc)

Ethylene Glycol Chiller for Dairy Industry

Glycol Chiller in South America
