Low Pressure Air Compressors

Technical Specifications:
The DARKO Water-Cooled Scroll Chiller delivers reliable, high-performance cooling for industrial and commercial applications. Engineered with advanced scroll compressor technology and corrosion-resistant components, this system ensures 30% higher energy efficiency compared to traditional reciprocating chillers, making it a sustainable choice for facilities prioritizing operational cost savings and environmental compliance.
Industrial water-cooled chiller Cooling Capacity: 2 Ton~60 Tons
Water Cooled Type Condenser:High Efficiency Shell and tube
Certifications: ISO 9001, CE
Eco-friendly refrigerant chiller: R22, R407c,R410A
Evaporator And Condenser: High Efficiency Shell and tube
High Quality Compressor from Copeland / Panasonic /Danfoss
Completely protection system for the whole Energy-efficient process chiller
Energy-saving and easy installation&operation

Email

Inquiry Now

Description

Technical Parameters

Detail Images

1. Specially Designed Low-Pressure Air End

The AEDL low-pressure air compressor series adopts the same airflow capacity as the AED series but features specially optimized rotor profiles and an enhanced exhaust valve design. This ensures low RPM operation, high efficiency, extended lifespan, minimal downtime, and ultra-low noise levels, maintaining the series signature reliability.

2. Lubrication Assurance at Ultra-Low Pressure

Lubrication oil plays four critical roles: lubrication, sealing, cooling, and noise reduction. Compressed air drives oil circulation, but under ultra-low pressure conditions (e.g., ≤0.2MPa), insufficient oil supply can lead to abnormal noise, bearing/rotor wear, overheating, and leakage. To address this, the AE AEDL series incorporates a dedicated oil pressurization device and customized piping design, ensuring stable oil supply even at ultra-low discharge pressures.

3. Ultra-Enhanced Oil-Gas Separation System

Low-pressure air compressors generate larger compressed air volumes and higher flow velocities compared to standard models, requiring a specialized oil-gas separation system. The AEDL series features a separation capacity increased by over 80% versus conventional compressors with equivalent airflow. This guarantees superior air quality and prolonged oil separator lifespan.

4. Long-Term Cost Efficiency & Reliability

A high-efficiency, reliable machine like the AEDL not only reduces upfront costs but also ensures minimal maintenance downtime and maximized service intervals day after day, year after year.

Series	Model	Air Flow (m³/min)	Pressure (Bar)	Driven Type	Motor Power(Kw)	Pipe Dia	Dimension *(LWH mm)*	Weight (KG)
AEDL7.5A	AEDL7.5A-0.4	1.73	0.4	Belt	7.5	G3/4"	700×720x1170	300
	AEDL7.5A-0.5	1.65	0.5
AEDL11A	AEDL11A-0.4	2.42	0.4	Belt	11	G1"	1150×900×1350	480
	AEDL11A-0.5	2.32	0.5
AEDL15A	AEDL15A-0.4	3.43	0.4	Belt	15	G1"	1150×900×1350	650
	AEDL15A-0.5	3.32	0.5
AEDL22A	AEDL22A-0.4	4.88	0.4	Belt	22	G1-1/2"	1450×1050×1560	940
	AEDL22A-0.5	4.73	0.5
AEDL30A	AEDL30A-0.4	6.35	0.4	Belt	30	G1-1/2"	1450×1050×1560	1000
	AEDL30A-0.5	6.20	0.5
AEDL37A	AEDL37A-0.4	7.28	0.4	Belt	37	G1-1/2"	1450×1050×1560	1050
	AEDL37A-0.5	7.12	0.5
AEDL45A(W)	AEDL45A(W)-0.4	10.5	0.4	Direct	45	DN50	2200x1230×1700	1750
	AEDL45A(W)-0.5	10.0	0.5
AEDL55A(W)	AEDL55A(W)-0.4	13.65	0.4	Direct	55	DN50	2200×1230×1700	1900
	AEDL55A(W)-0.5	13.20	0.5
AEDL90A(W)	AEDL90A(W)-0.4	20.8	0.4	Direct	90	DN80	2700×1650×1850	3160
	AEDi 00A(W)-0	19.0	0.5

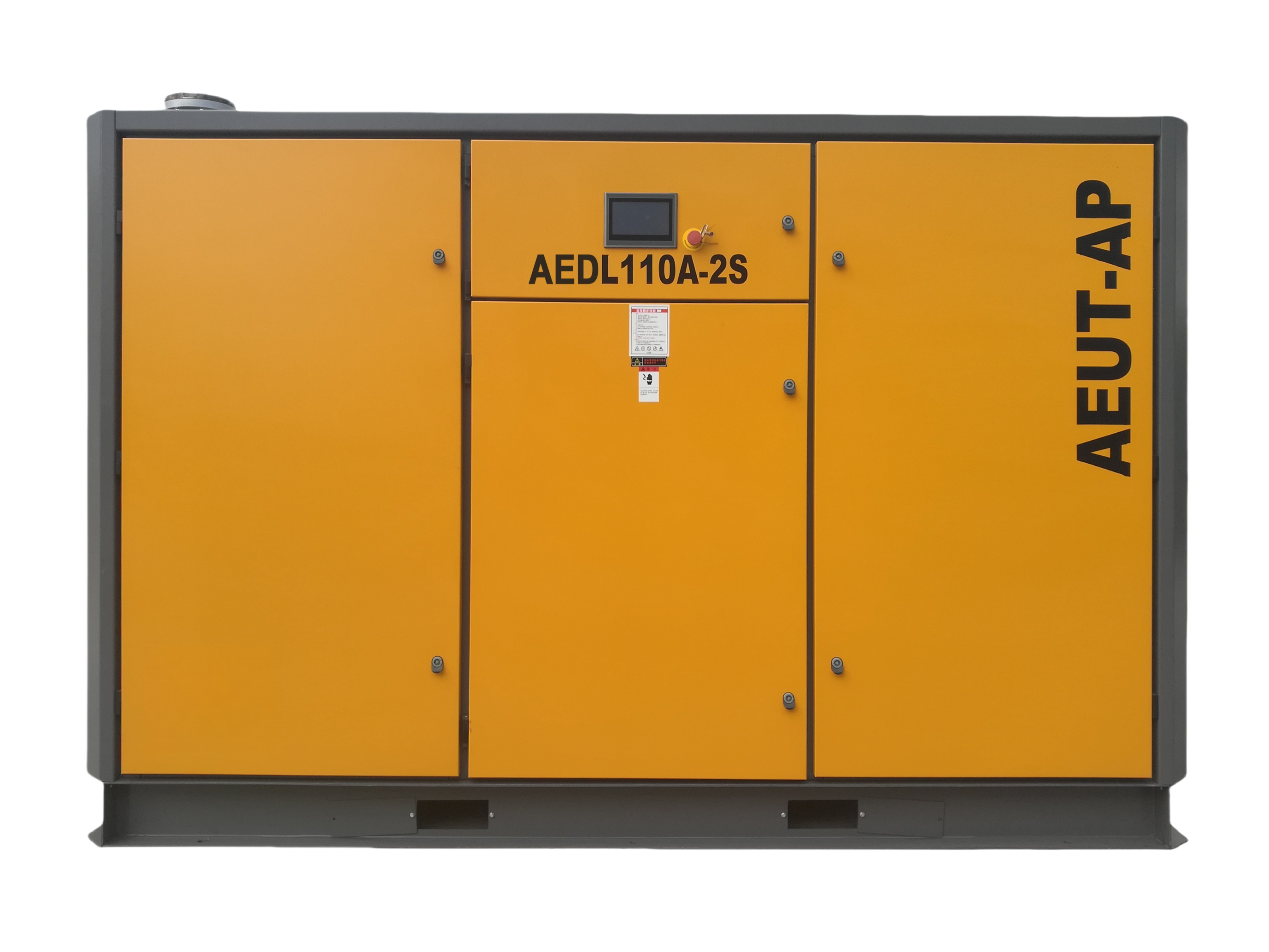

AEDL110A(W)	AEDL110A(W)-0.4	27.0	0.4	Direct	110	DN80	3000×1750×2000	3650
	AEDL110A(W)-0.5	24.0	0.5

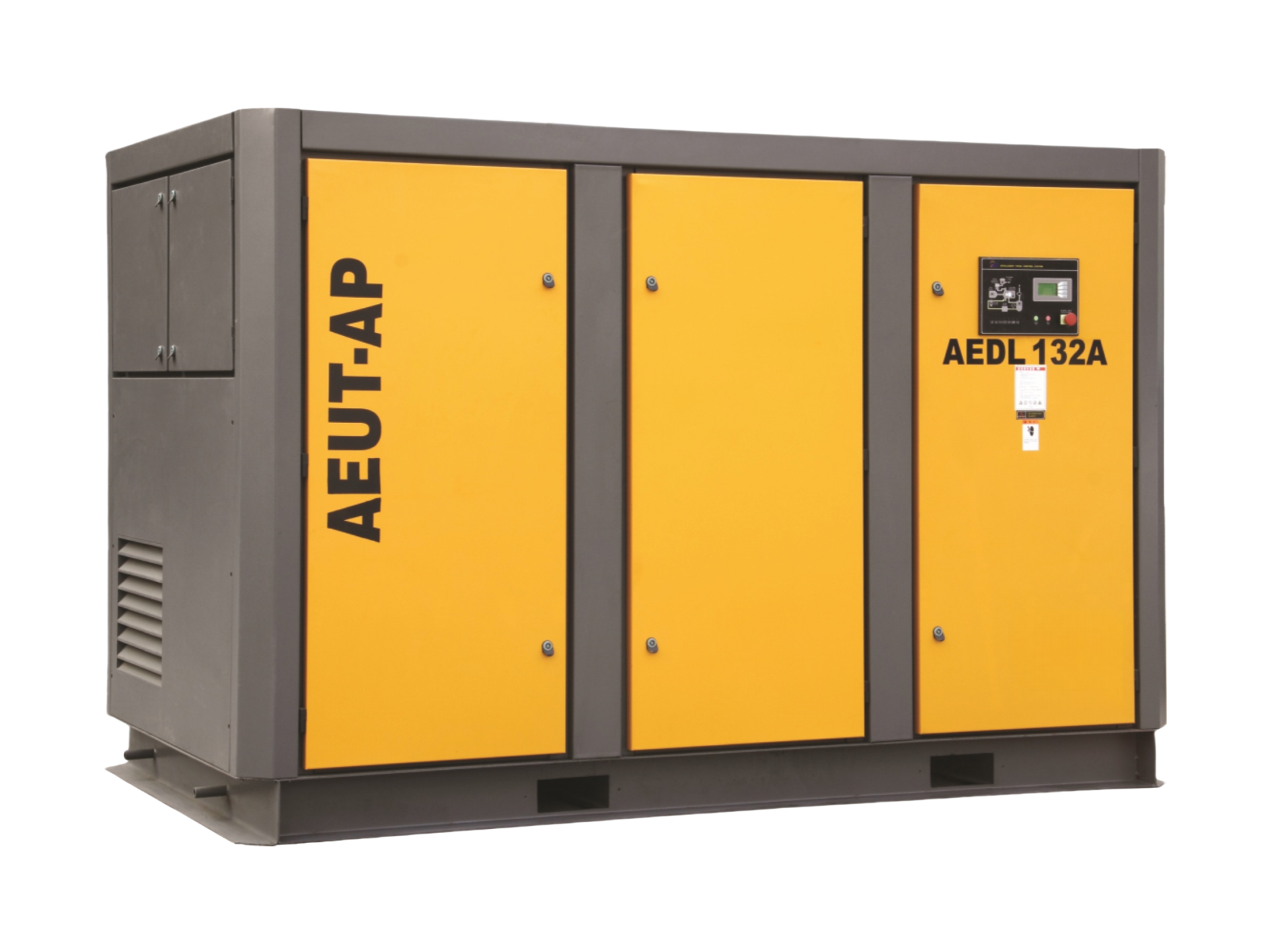

AEDL132A(W)	AEDL132A(W)-0.4	32.3	0.4	Direct	132	DN100	3000×1750×2000	3780
	AEDL132A(W)-0.5	30.0	0.5
AEDL160A(W)	AEDL160A(W)-0.4	38.5	0.4	Direct	160	DN100	3500×1900×2200	4650
	AEDL160A(W)-0.5	34.8	0.5
AEDL185A(W)	AEDL185A(W)-0.4	43.6	0.4	Direct	185	DN100	3500×1900×2200	4950
	AEDL185A(W)-0.5	40.0	0.5
AEDL200A(W)	AEDL200A(W)-0.4	47.2	0.4	Direct	200	DN100	3500×1900×2200	5120
	AEDL200A(W)-0.5	42.5	0.5
AEDL220A(W)	AEDL220A(W)-0.4	52.0	0.4	Direct	220	DN150	4200×2200×2250	6080
	AEDL220A(W)-0.5	46.9	0.5
AEDL250A(W)	AEDL250A(W)-0.4	61.0	0.4	Direct	250	DN150	4200×2200×2250	6370
	AEDL250A(W)-0.5	54.6	0.5
1. In the suffix of the model and type, A stands for air cooling, and W stands for water cooling; 2. Motor power supply: 380V/3φ/50Hz (For models above 220kW, main power supply 6KV, 10KV optional, control power supply: 380V/three-phase four-wire/50Hz); 3. Other models with lower exhaust pressure (for example: 0.2MPa) can be specially customized.
